Pick a machine, then hover over the numbered pins to see which Ti2 products and brands suit each part of it: from air supply and grippers to controllers, I/O and remote access.
Pick and place packaging line
A conveyor-fed pick-and-place cell, from the compressed air supply and valves to the gripper, the sensors, the controller and the cloud link.
Linear axis
Carries the gripper between the pick and place positions with programmable, repeatable positioning.
Gripper
Lifts and releases each carton without damage. Parallel, angular and vacuum grippers cover most packaging shapes.
Valve terminal
Switches the air to the gripper and cylinders from one compact block, connected to the controller over a single fieldbus cable.
Air preparation
Filters, regulates and monitors the compressed air so the valves and cylinders downstream run reliably.
Sensors
Detect cartons on the conveyor and confirm cylinder and gripper positions so the cycle never runs blind.
Pneumatic cylinder
Pushes cartons onto the conveyor and diverts rejects: fast, strong and simple to maintain.
Operator panel (HMI)
Shows machine status, alarms and recipes to the operator, and runs on the same CODESYS platform as the controller.
Industrial PC with soft PLC
Runs the machine sequence as a CODESYS soft PLC on a fanless industrial PC, with room alongside it for vision or data tasks. The CODESYS runtime is licensed separately.
Remote I/O
Brings sensors, valves and drives into the controller over fieldbus, with fewer wires and quicker commissioning.
IoT gateway
Sends machine data to a dashboard or the cloud and gives your engineers secure remote access.
Industrial Ethernet switch
Links the controller, remote I/O and gateway on one robust DIN-rail network. A managed PROFINET switch is configured by the PLC like any other device.
- Linear axis: Carries the gripper between the pick and place positions with programmable, repeatable positioning. Brands: Festo. Festo electric axes and actuators Festo motors and servo drives
- Gripper: Lifts and releases each carton without damage. Parallel, angular and vacuum grippers cover most packaging shapes. Brands: Festo. Festo grippers
- Valve terminal: Switches the air to the gripper and cylinders from one compact block, connected to the controller over a single fieldbus cable. Brands: Festo. Festo valves and valve terminals
- Air preparation: Filters, regulates and monitors the compressed air so the valves and cylinders downstream run reliably. Brands: Festo. Festo air preparation
- Sensors: Detect cartons on the conveyor and confirm cylinder and gripper positions so the cycle never runs blind. Brands: Festo. Festo sensors
- Pneumatic cylinder: Pushes cartons onto the conveyor and diverts rejects: fast, strong and simple to maintain. Brands: Festo. Festo pneumatic cylinders
- Operator panel (HMI): Shows machine status, alarms and recipes to the operator, and runs on the same CODESYS platform as the controller. Brands: Festo, Berghof, Taicenn. Festo HMIs Berghof HMIs Taicenn touch monitors Taicenn panel PCs
- Industrial PC with soft PLC: Runs the machine sequence as a CODESYS soft PLC on a fanless industrial PC, with room alongside it for vision or data tasks. The CODESYS runtime is licensed separately. Brands: Taicenn, Elastel. Taicenn panel PCs Taicenn embedded and industrial PCs Elastel embedded and industrial PCs
- Remote I/O: Brings sensors, valves and drives into the controller over fieldbus, with fewer wires and quicker commissioning. Brands: Festo, Helmholz, Odot, Berghof. Festo remote I/O Helmholz remote I/O Odot remote I/O Berghof remote I/O
- IoT gateway: Sends machine data to a dashboard or the cloud and gives your engineers secure remote access. Brands: Helmholz, Elastel, Odot. Helmholz gateways Elastel gateways Odot gateways Helmholz routers Elastel routers
- Industrial Ethernet switch: Links the controller, remote I/O and gateway on one robust DIN-rail network. A managed PROFINET switch is configured by the PLC like any other device. Brands: Helmholz, Odot. Helmholz Ethernet switches Odot Ethernet switches
Automated stacking cell
A guarded cell that stacks thin sheets at speed, with vacuum handling on electric axes, safe monitoring of the work area and remote support.
Electric linear axes
Move the gripper over the feed and the stack with the speed and repeatability sheet handling needs.
Vacuum gripper
Holds thin sheets flat and releases them cleanly, with no marks and no damage.
Sheet presence sensing
Confirms a sheet is there before the pick and that it has gone after the place.
Pneumatic clamp
Holds the finished stack steady while the next sheet is placed.
Industrial router
Gives the cell a secure link to the plant network and to your support engineers.
Operator panel (HMI)
Recipes, alarms and cell status in one place for the operator.
Controller (PLC)
Coordinates the axes, the vacuum, the clamp and the safety functions.
Safety I/O
Safe inputs and outputs for the e-stop and other safety devices, on the same bus as the standard I/O.
Air preparation
Filters, regulates and monitors the compressed air for the vacuum gripper and the clamp.
Valves
Switch the air to the vacuum gripper and the clamp on command from the controller.
Industrial Ethernet switch
Carries the PLC, safety I/O, panel and router traffic on one network. A managed PROFINET switch gives ring redundancy and is set up from the PLC project.
- Electric linear axes: Move the gripper over the feed and the stack with the speed and repeatability sheet handling needs. Brands: Festo. Festo electric axes and actuators Festo motors and servo drives
- Vacuum gripper: Holds thin sheets flat and releases them cleanly, with no marks and no damage. Brands: Festo. Festo vacuum handling Festo adaptive grippers
- Sheet presence sensing: Confirms a sheet is there before the pick and that it has gone after the place. Brands: Festo. Festo optical sensors Festo inductive sensors
- Pneumatic clamp: Holds the finished stack steady while the next sheet is placed. Brands: Festo. Festo pneumatic cylinders
- Industrial router: Gives the cell a secure link to the plant network and to your support engineers. Brands: Helmholz, Elastel. Helmholz routers Elastel routers
- Operator panel (HMI): Recipes, alarms and cell status in one place for the operator. Brands: Festo, Berghof, Taicenn. Festo HMIs Berghof HMIs Taicenn touch monitors Taicenn panel PCs
- Controller (PLC): Coordinates the axes, the vacuum, the clamp and the safety functions. Brands: Berghof, Festo, Odot. Berghof PLCs Festo PLCs Odot PLCs
- Safety I/O: Safe inputs and outputs for the e-stop and other safety devices, on the same bus as the standard I/O. Brands: Berghof. Berghof safety I/O Berghof safety PLCs
- Air preparation: Filters, regulates and monitors the compressed air for the vacuum gripper and the clamp. Brands: Festo. Festo air preparation
- Valves: Switch the air to the vacuum gripper and the clamp on command from the controller. Brands: Festo. Festo valves and valve terminals
- Industrial Ethernet switch: Carries the PLC, safety I/O, panel and router traffic on one network. A managed PROFINET switch gives ring redundancy and is set up from the PLC project. Brands: Helmholz, Odot. Helmholz Ethernet switches Odot Ethernet switches

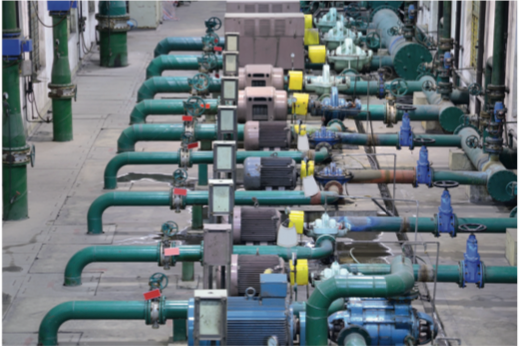

Remote water pump station
An unattended pump station: pressure and level sensing, valve control, an outstation controller with remote I/O and a cellular link back to the control room.
Level sensing
Measures the tank level so the controller starts and stops the pump at the right points.
Actuated valve
Opens and closes the line on command. Pneumatic actuators and valve terminals give fast, fail-safe action.
Pressure transmitter
Watches line pressure for pump protection, leak detection and alarms.
Outstation controller
Runs the station on its own and keeps running if the link to the control room drops.
Remote I/O
Gathers the field signals from the pump, valve and sensors, in a compact, easy-to-wire block.
Cellular gateway
Reports alarms and readings to the control room over 4G and gives secure remote access for engineers.
PROFIBUS PA gateway
Where the pressure, flow and level instruments are PROFIBUS PA devices, this brings their PA segments into a PROFINET controller and leaves the existing instruments in place. One pnGate PA handles up to four PA segments.
- Level sensing: Measures the tank level so the controller starts and stops the pump at the right points. Brands: Festo. Festo sensors
- Actuated valve: Opens and closes the line on command. Pneumatic actuators and valve terminals give fast, fail-safe action. Brands: Festo. Festo valves and valve terminals
- Pressure transmitter: Watches line pressure for pump protection, leak detection and alarms. Brands: Festo. Festo pressure sensors Festo sensors
- Outstation controller: Runs the station on its own and keeps running if the link to the control room drops. Brands: Berghof, Festo, Odot. Berghof PLCs Festo PLCs Odot PLCs
- Remote I/O: Gathers the field signals from the pump, valve and sensors, in a compact, easy-to-wire block. Brands: Festo, Helmholz, Odot, Berghof. Festo remote I/O Helmholz remote I/O Odot remote I/O Berghof remote I/O
- Cellular gateway: Reports alarms and readings to the control room over 4G and gives secure remote access for engineers. Brands: Helmholz, Elastel, Odot. Helmholz gateways Elastel gateways Odot gateways Helmholz routers Elastel routers
- PROFIBUS PA gateway: Where the pressure, flow and level instruments are PROFIBUS PA devices, this brings their PA segments into a PROFINET controller and leaves the existing instruments in place. One pnGate PA handles up to four PA segments. Examples: Softing pnGate PA: PROFINET to PROFIBUS PA gateway.
Control cabinet with remote monitoring
The brain of any machine: controller, I/O and operator panel in the cabinet, with an IoT gateway sending the data to a remote dashboard.
Industrial Ethernet switch
Links the controller, I/O, panel and gateways on a robust DIN-rail network. A managed PROFINET switch takes its settings from the PLC; unmanaged switches are plug and play. An IP67 version mounts out on the machine.
LTE industrial router
Gives engineers secure remote access over a cellular link, using an encrypted VPN tunnel, and carries the machine data up to the cloud.
IoT gateway
Collects machine data and sends it to a dashboard or the cloud. A PROFINET to MQTT coupler can publish PLC values straight to an MQTT broker.
Remote I/O
Adds inputs and outputs next to the machine instead of long cable runs back to the cabinet: a PROFINET bus coupler with digital and analog modules clipped on.
Controller (PLC)
Runs the machine, drives the operator panel directly and publishes its data to the gateways. Compact CODESYS controllers fit a small cabinet.
SDEX Suite Gateway
Connects PLC and CNC controllers to ERP, MES and SCADA systems over OPC UA and MQTT, with TLS security and separate ports for the machine (OT) and IT networks.
PROFIBUS PA gateway
For process plants: brings PROFIBUS PA field instruments into a PROFINET controller without replacing them.
Operator panel (HMI)
Local status, alarms and recipes at the machine, connected directly to the controller on the same platform.
Remote monitoring
Machine health and production figures on any screen, reached through the cloud from the LTE router, so problems are seen and fixed before they stop the line. PROFINET devices can be diagnosed from the office.
- Industrial Ethernet switch: Links the controller, I/O, panel and gateways on a robust DIN-rail network. A managed PROFINET switch takes its settings from the PLC; unmanaged switches are plug and play. An IP67 version mounts out on the machine. Brands: Helmholz, Odot. Helmholz Ethernet switches Odot Ethernet switches
- LTE industrial router: Gives engineers secure remote access over a cellular link, using an encrypted VPN tunnel, and carries the machine data up to the cloud. Brands: Helmholz, Elastel. Helmholz routers Elastel routers
- IoT gateway: Collects machine data and sends it to a dashboard or the cloud. A PROFINET to MQTT coupler can publish PLC values straight to an MQTT broker. Brands: Helmholz, Elastel, Odot. Helmholz gateways Elastel gateways Odot gateways Helmholz routers Elastel routers
- Remote I/O: Adds inputs and outputs next to the machine instead of long cable runs back to the cabinet: a PROFINET bus coupler with digital and analog modules clipped on. Brands: Festo, Helmholz, Odot, Berghof. Festo remote I/O Helmholz remote I/O Odot remote I/O Berghof remote I/O
- Controller (PLC): Runs the machine, drives the operator panel directly and publishes its data to the gateways. Compact CODESYS controllers fit a small cabinet. Brands: Berghof, Festo, Odot. Berghof PLCs Festo PLCs Odot PLCs
- SDEX Suite Gateway: Connects PLC and CNC controllers to ERP, MES and SCADA systems over OPC UA and MQTT, with TLS security and separate ports for the machine (OT) and IT networks. Examples: Softing SDEX Suite Gateway: OPC UA and MQTT access to PLC and CNC controller data.
- PROFIBUS PA gateway: For process plants: brings PROFIBUS PA field instruments into a PROFINET controller without replacing them. Examples: Softing pnGate PA: PROFINET to PROFIBUS PA gateway.
- Operator panel (HMI): Local status, alarms and recipes at the machine, connected directly to the controller on the same platform. Brands: Festo, Berghof, Taicenn. Festo HMIs Berghof HMIs Taicenn touch monitors Taicenn panel PCs
- Remote monitoring: Machine health and production figures on any screen, reached through the cloud from the LTE router, so problems are seen and fixed before they stop the line. PROFINET devices can be diagnosed from the office. Examples: Softing dataFEED OPC Suite Extended, Softing smartLink HW-PN: asset-management access to PROFINET devices. Brands: Helmholz, Elastel, Odot. Helmholz gateways Elastel gateways Odot gateways Helmholz routers Elastel routers
Every machine is different. If you do not see yours here, tell us what you are building and we will match the parts.
Have an application in mind?
Tell us about your process and we'll help you find the right framework.
