Berghof - B-Nimis MC-Pi Prime
Excluding GST. Volume discounts available.
High-performance CODESYS quad-core controller based on Raspberry Pi® This more powerful addition to the MC-Pi Pro offers the same features with the addition of extra interfaces and a uSD card slot. Time-saving updates via USB and uSD card for the firmware or customer applications in the field are, therefore, no longer a problem. In addition, the Prime model can be optimally evaluated, analyzed or modified by saving or backing up data or configurations on the SD card of the PLC.
Technical Description

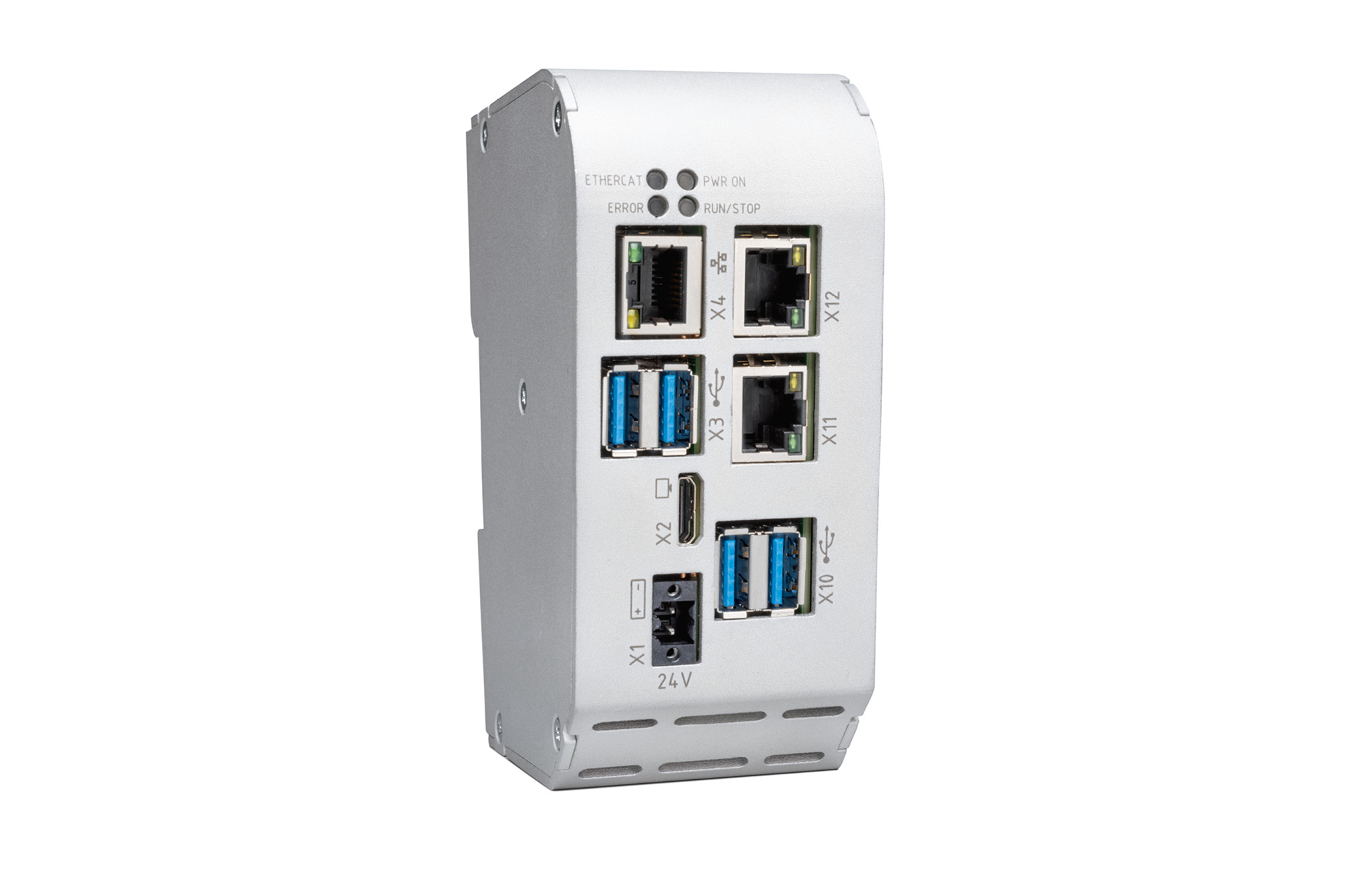

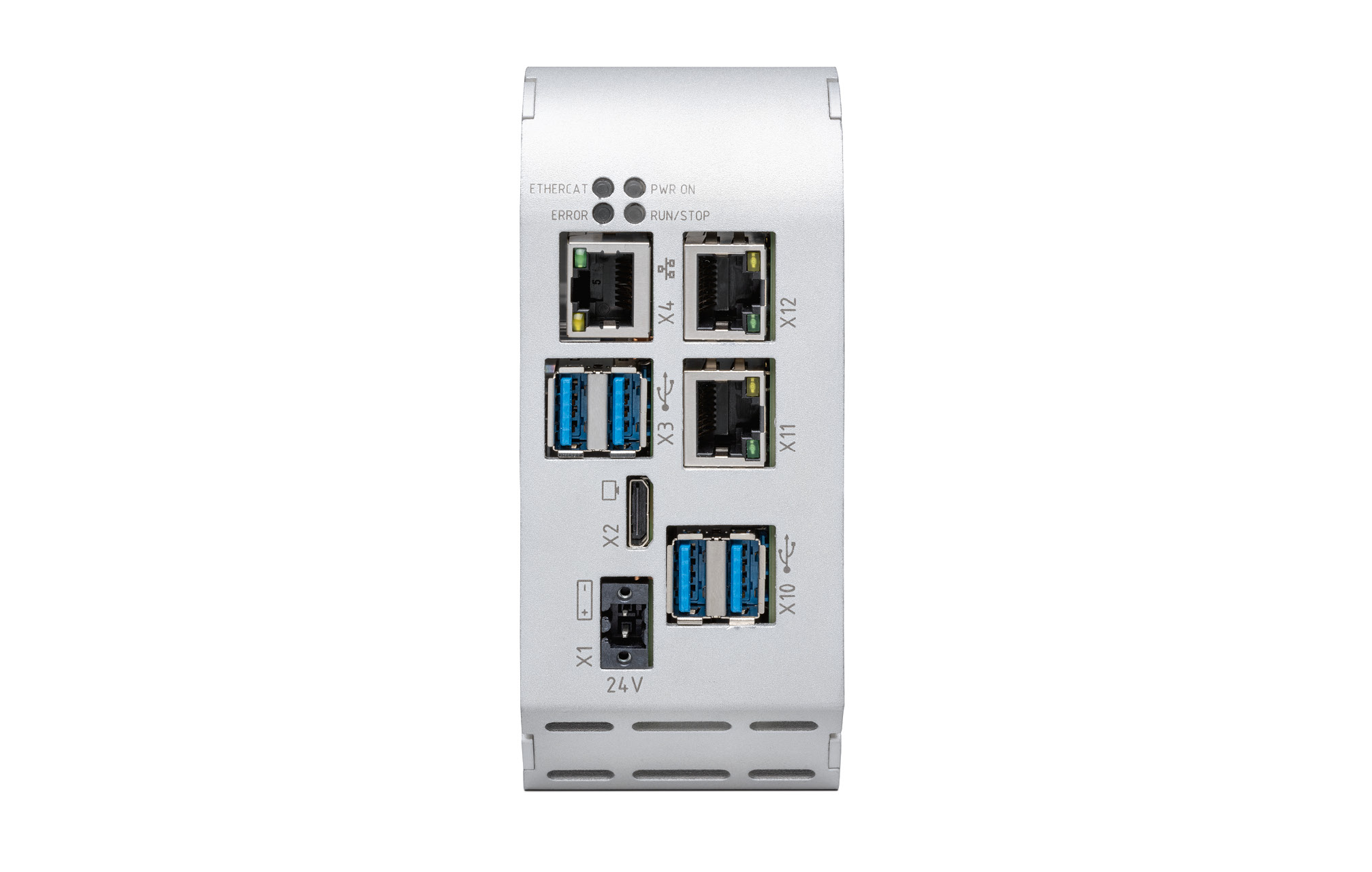

MC-Pi Prime
The Prime model offers additional interfaces and a uSD card slot. Time-saving updates for firmware or customer applications are possible via USB or uSD card. Data and project configurations can be saved on the SD card, backed up and conveniently evaluated or exchanged.
It is quickly ready for use thanks to preconfigured devices or automatic configuration via USB stick.
With USB 3.0, Gigabit Ethernet, WLAN and Bluetooth, this Raspberry Pi-based CODESYS PLC is a future-proof automation solution.
Features:
Up to 2GB RAM / 8GB Flash / 200kB Retain
4x host USB 3.0
1x uSD (SDXC)
Compatible with Berghof’s entire standard portfolio
Integrated EtherCAT communication system
Industrial temperature ranges
CODESYS standard
Optimized real-time behavior
WLAN & Bluetooth optional
Cycle times down to 500 μs
Outstanding visualization performance
Compute Module 4
Available with all common fieldbuses
Certificates for international use are available
