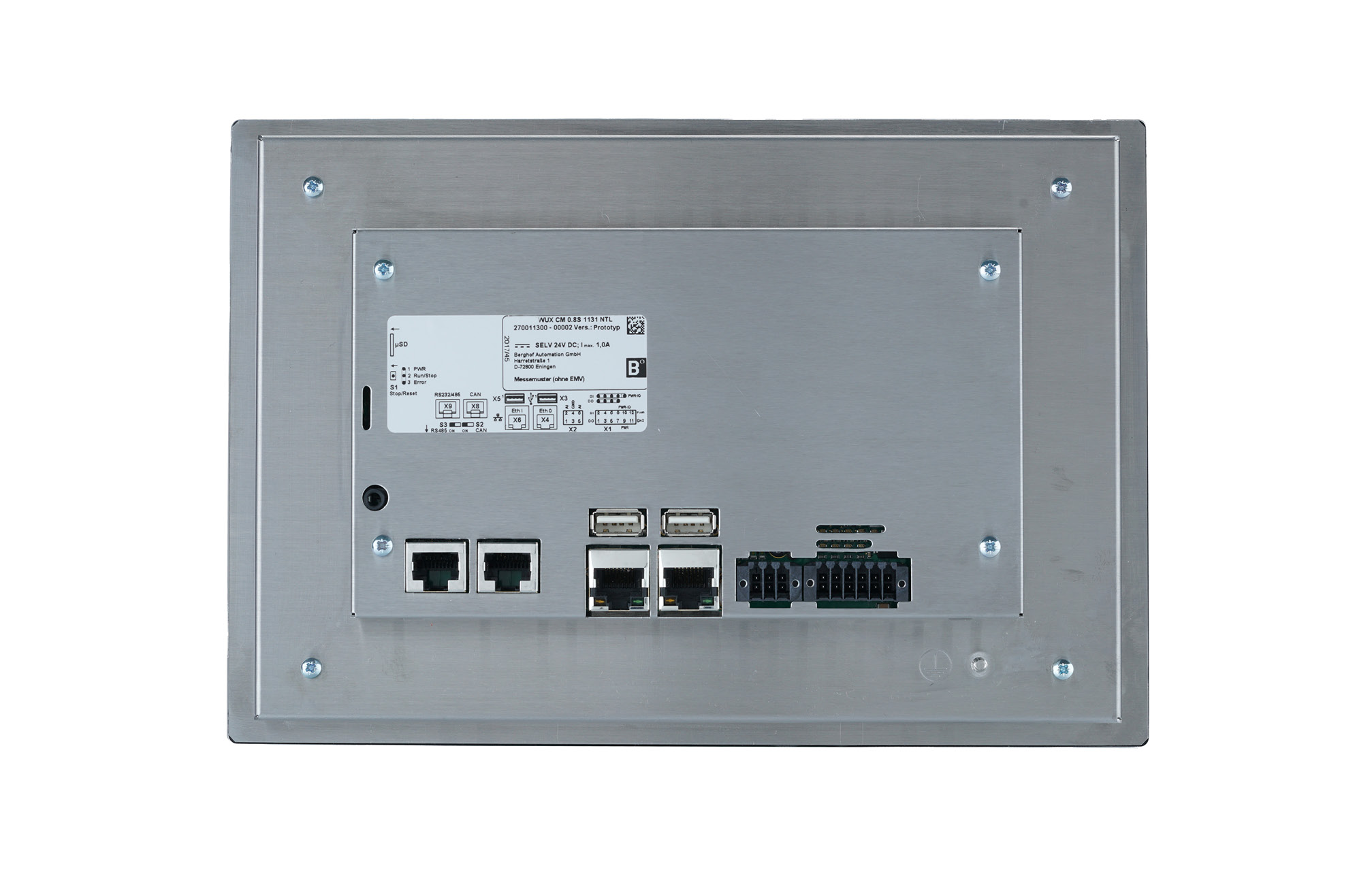

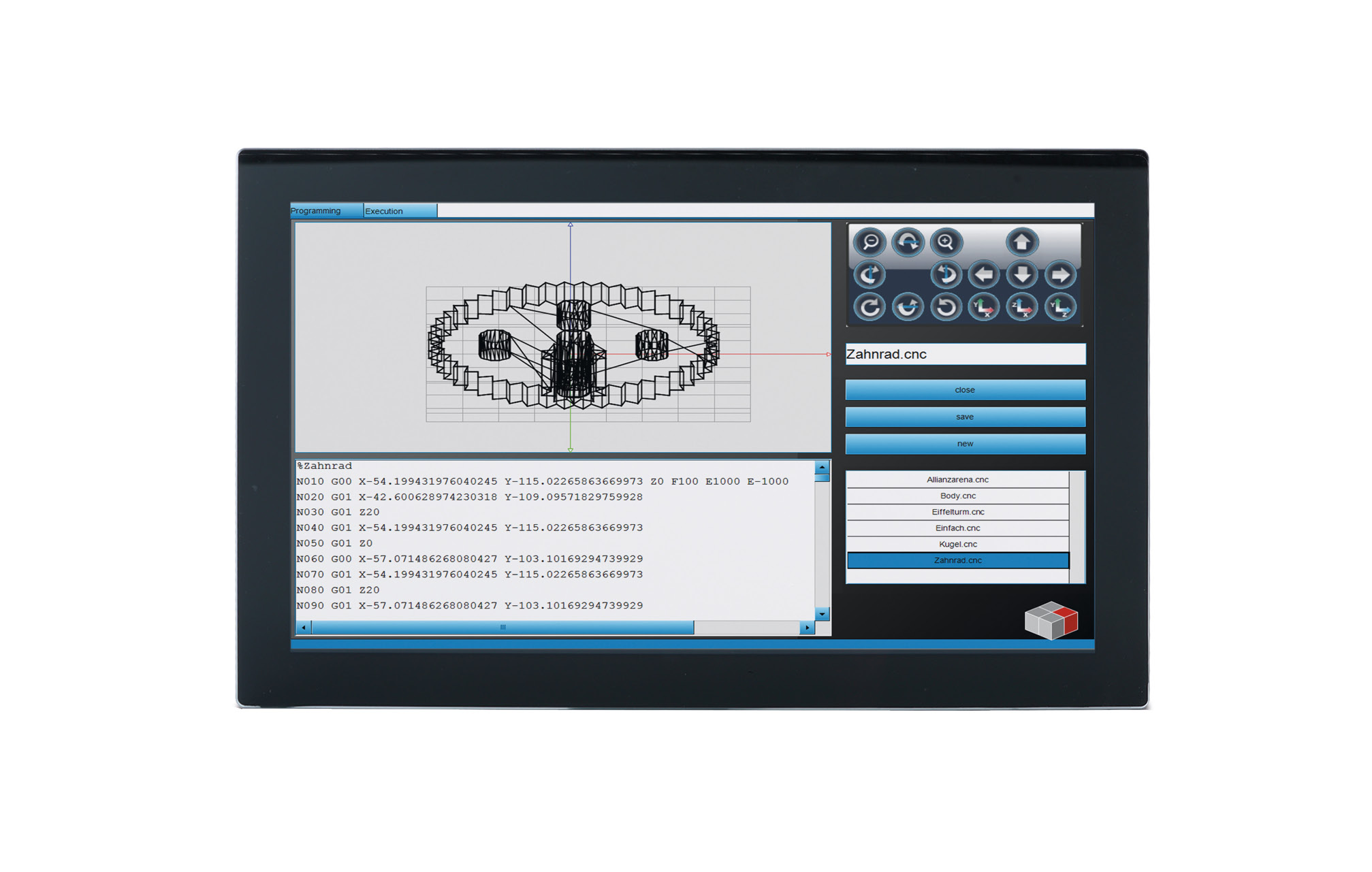

DC-Prime

This frameless display controller combines maximum flexibility with first-class performance.

Thanks to its 85° viewing angle in all directions and brilliant color reproduction, it impresses with razor-sharp image quality. The chemically hardened 2 mm glass ensures exceptional stability, while the multi-touch function and gesture control enable intuitive operation even in water, dirt or when wearing gloves.

The display with Full HD resolution (1920x1080 pixels) can be used in a variety of ways - from panel mounting to a support arm system - and can be perfectly adapted to any application.

Features:

• Available in 7", 10” and 15"

• Application update via USB

• Permitted for use in residential areas

• Application protection via tamper-proof hardware identification

• Optional downgrading of the PLC cycle time down to 500μs

• Three-wire measurement to compensate for line resistance

• OpenVPN

• Universally usable VNC + HTML5 web browser

• Configurable inputs for counters and encoders

• Control buttons for resetting / stopping / starting the PLC application

• Integrated switchable termination resistors for the interfaces

• Two-stage external HW watchdog

• PT100/PT1000-compatible analog inputs

• Separate power supply for the digital outputs in groups

• Serial 9-bit multi-drop mode

• Operating hours counter
