Berghof - Compact Controllers
Excluding GST. Volume discounts available.
The B-Fortis CC range is a family of compact, all-in-one industrial controllers designed to deliver high performance across a variety of automation and motion control applications. Each model in the range shares a consistent form factor while offering a scalable step-up in interfaces, I/Os, and features — from a lean, cost-effective entry point through to a full-featured flagship. The range is extended by a remote EtherCAT digital I/O module for flexible distributed configurations.
Technical Description

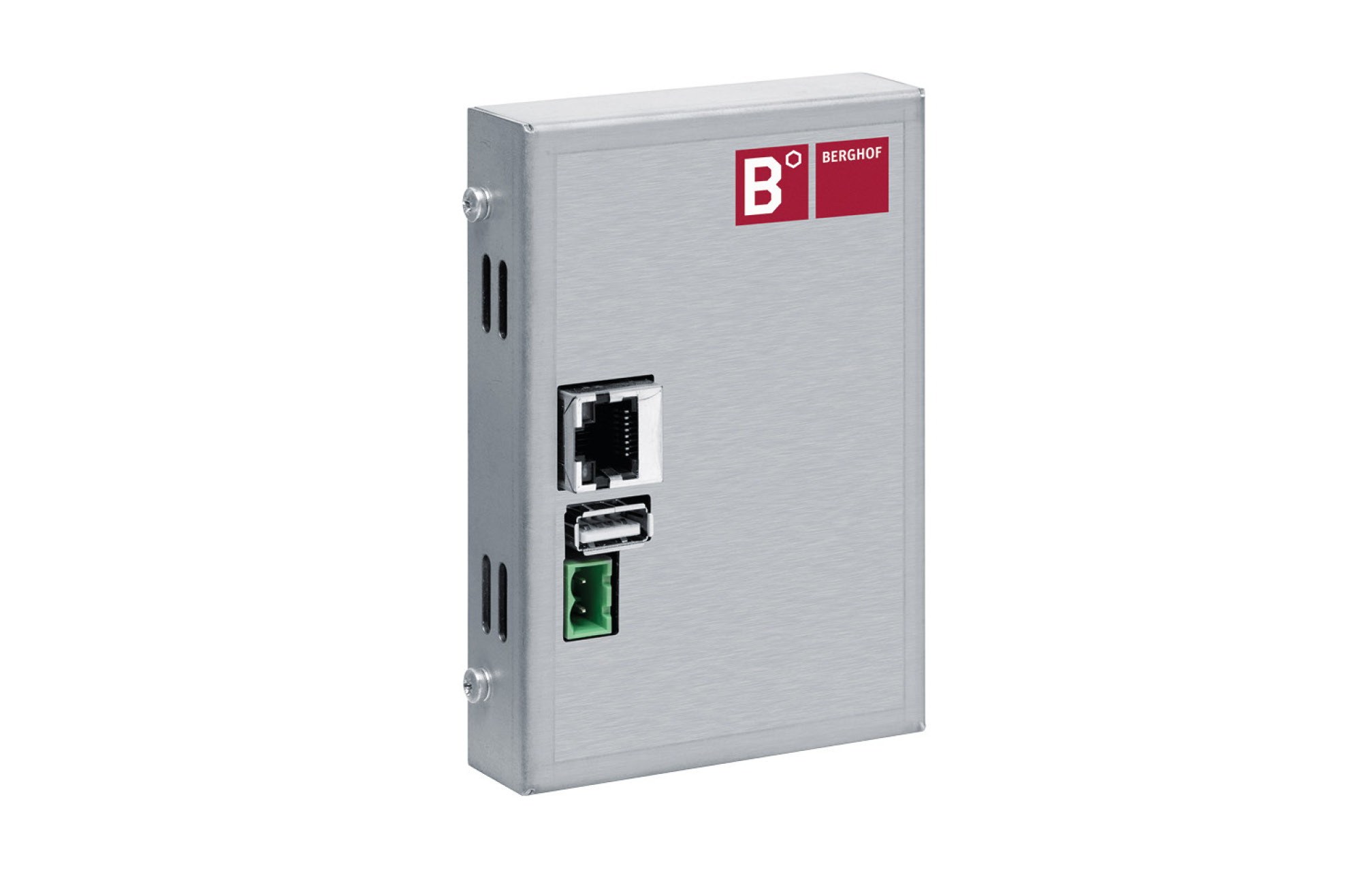

CC-Lite
Compact design with a strong price-performance ratio through deliberately reduced features
No compromise on processing performance despite the streamlined feature set
Overload, short circuit, reverse polarity, and overvoltage protection

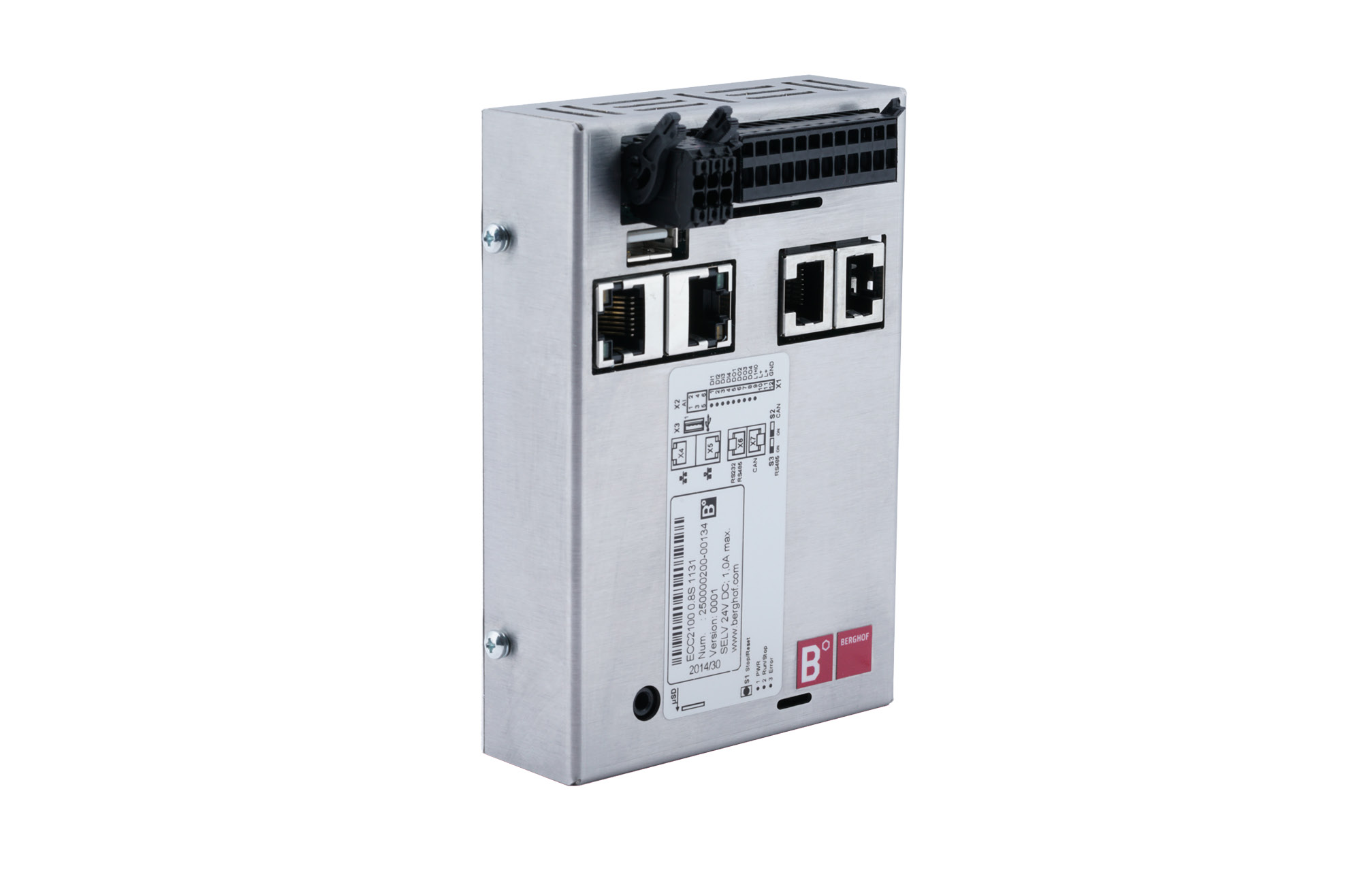

CC-Slim
Near-identical footprint to the CC-Lite, with significantly more interfaces and I/Os
Independent Ethernet interfaces via a unique hardware concept
Integrated temperature sensor monitoring, suitable for control cabinet use
Configurable inputs for counters and encoders
Control buttons for resetting, stopping, and starting the PLC application
Integrated switchable termination resistors for interfaces
PT100/PT1000-compatible analog inputs with up to 24-bit resolution
Buzzer with optional sound chip for MP3 playback

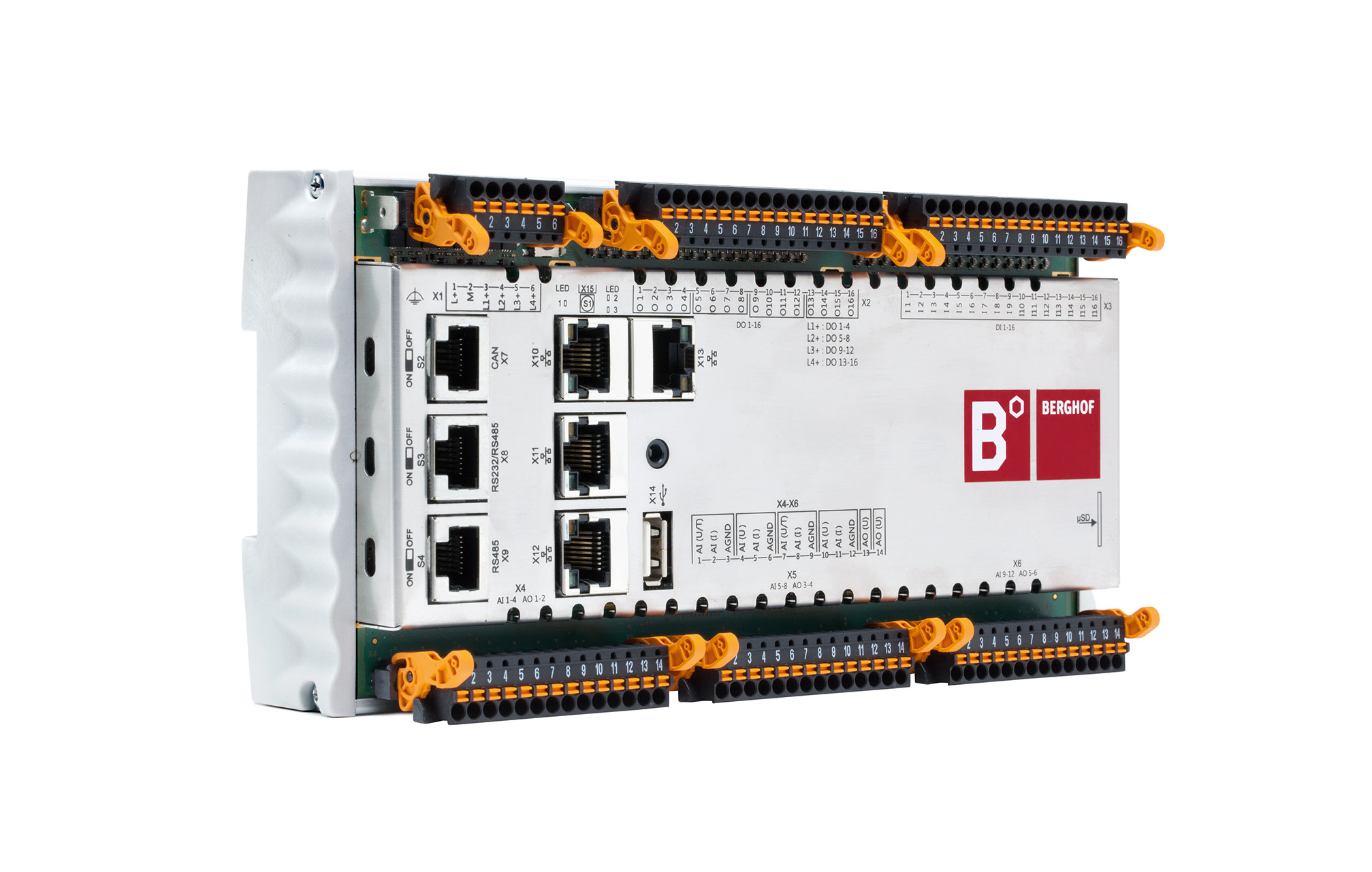

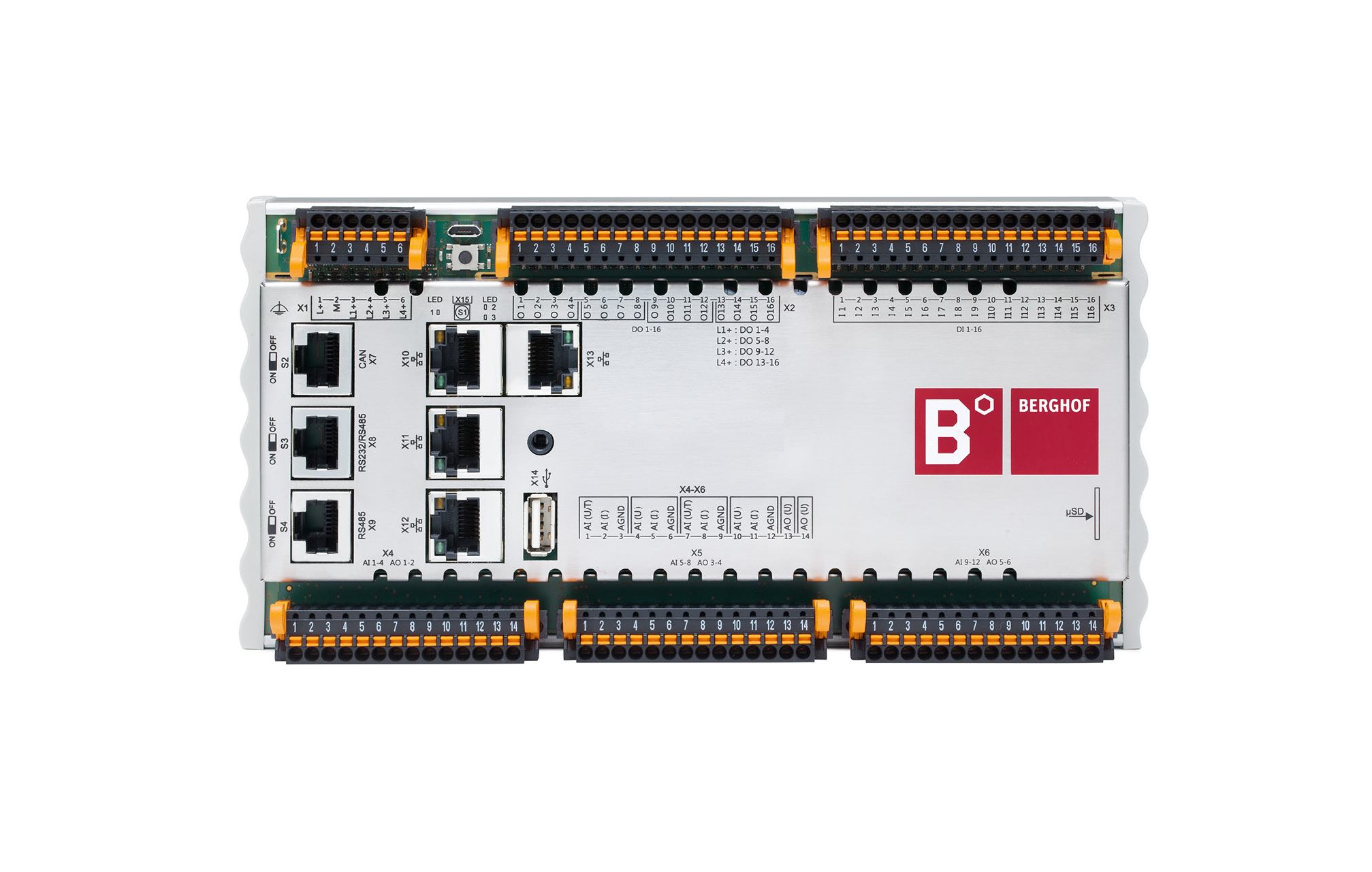

CC-Prime
Flagship model in the B-Fortis all-in-one series, combining maximum performance with versatile functionality
Generous interface capacity within a compact PLC form factor
Configurable inputs for counters and encoders, including integrated interrupt/event inputs
Application update via USB with tamper-proof hardware identification for application protection
Ethernet switch included as standard, suitable for multi-master operation
Digital outputs optionally compatible with currents up to 1 A
Buzzer with optional sound chip for MP3 playback

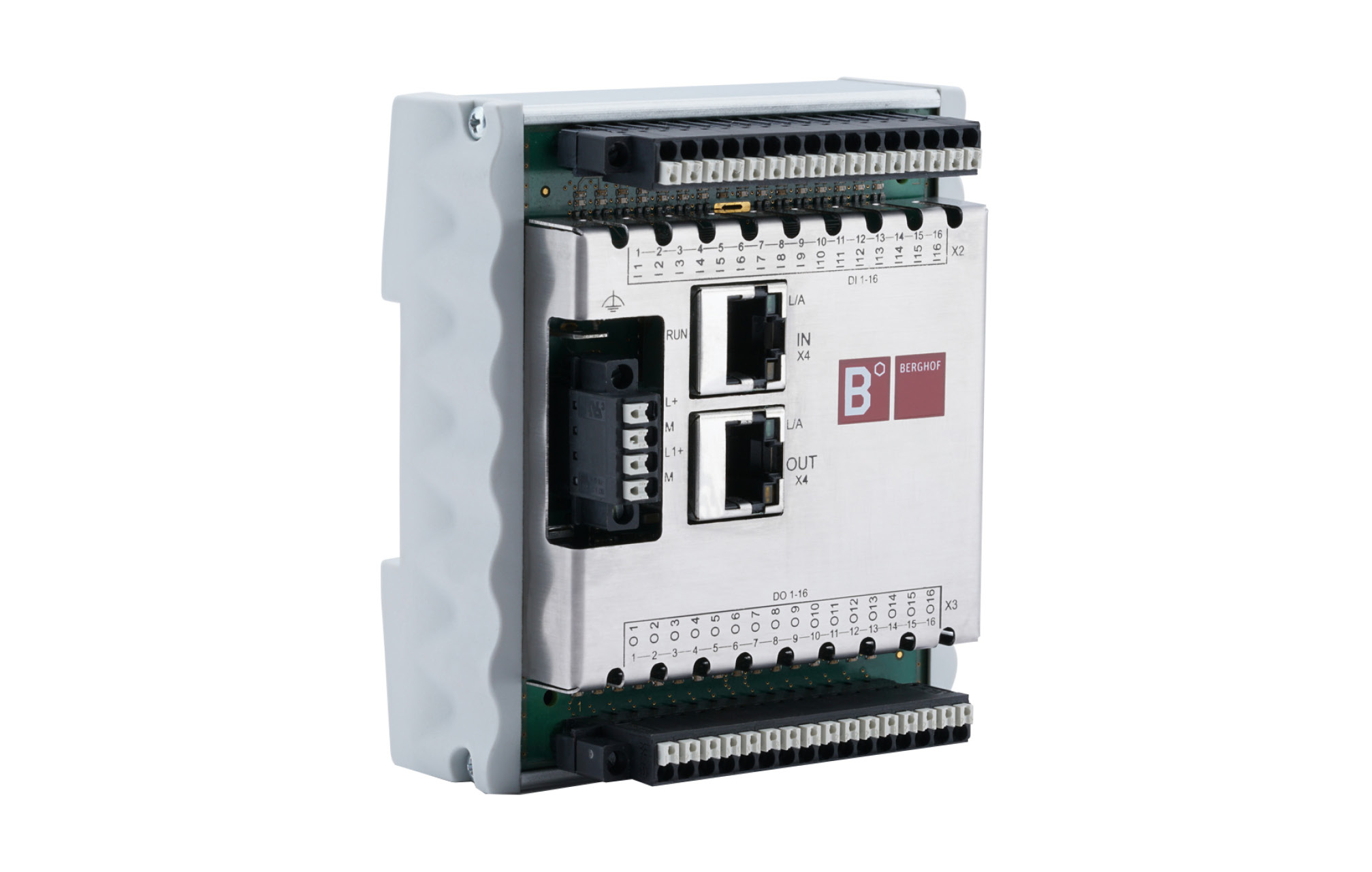

CC-DIO
Remote EtherCAT digital I/O extension with integrated bus coupler and extender
Connection via standard Ethernet cables up to 100 m in length
16 digital inputs and 16 digital outputs

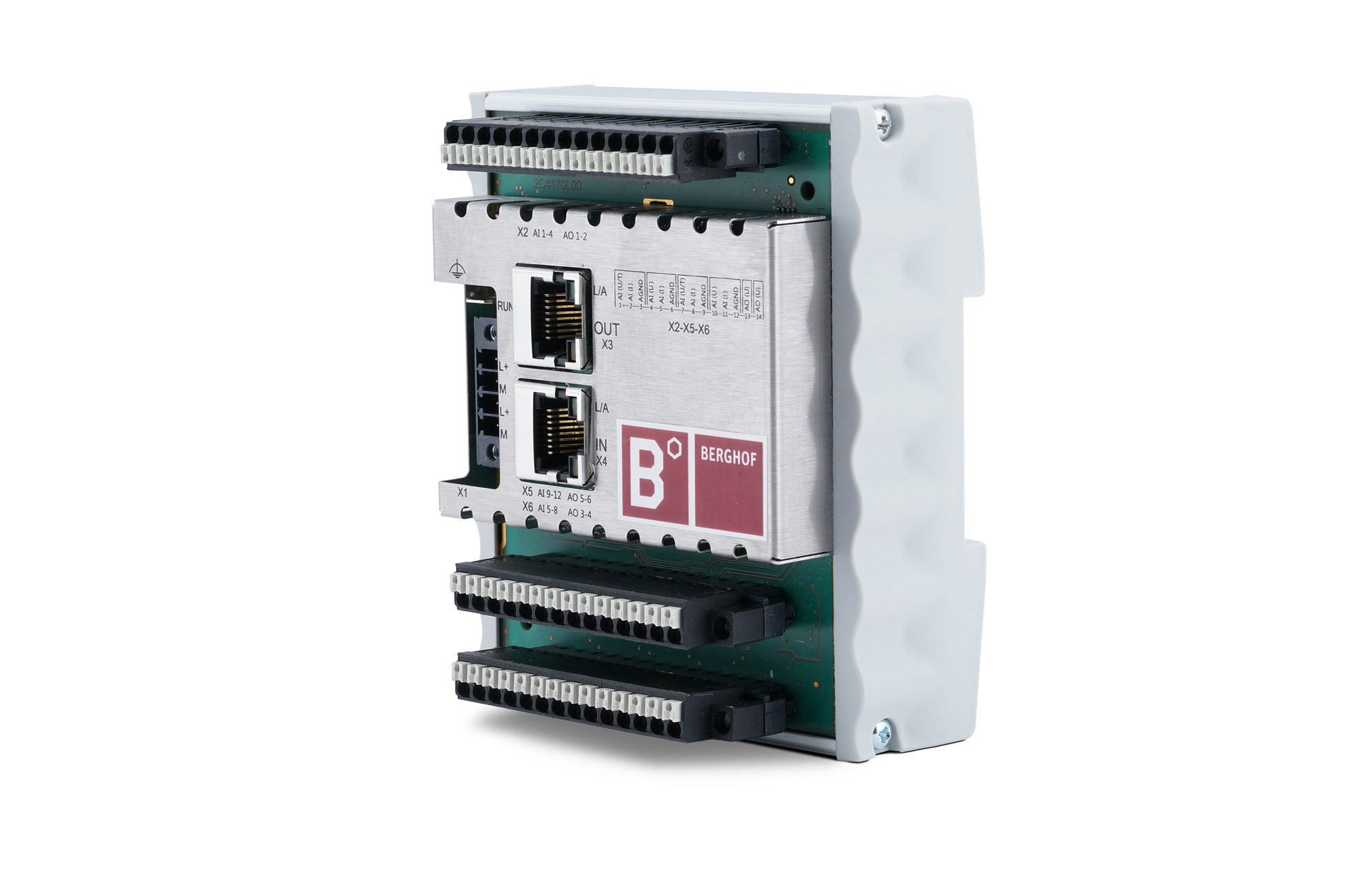

CC-AIO
Remote EtherCAT analog I/O extension with integrated bus coupler and extender
Connection via standard Ethernet cables up to 100 m in length
12 analog multi-function inputs and 6 analog voltage outputs
