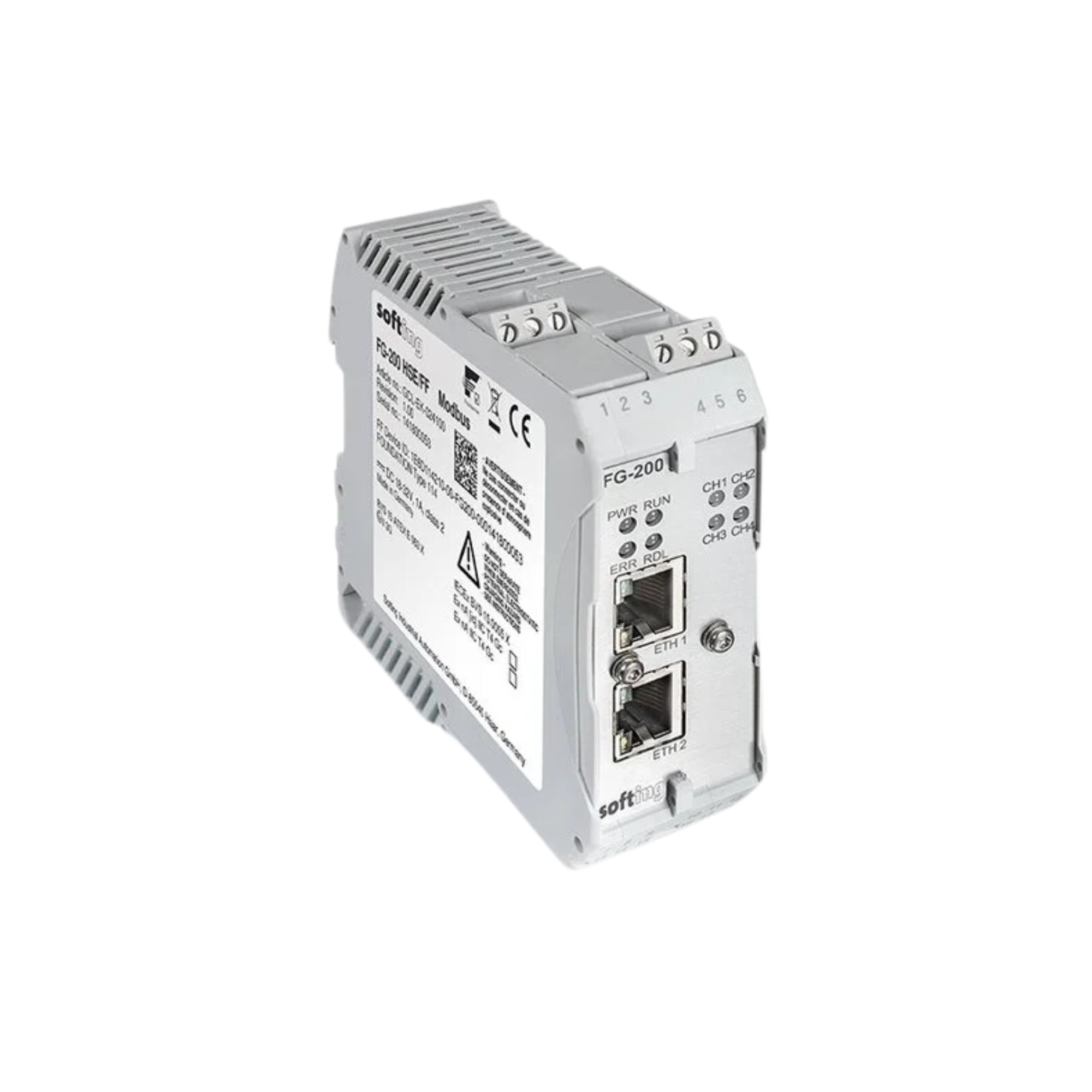

Softing Industrial – FG-200 HSE/FF Modbus – FF Network Integration Via Modbus
Excluding GST. Volume discounts available.

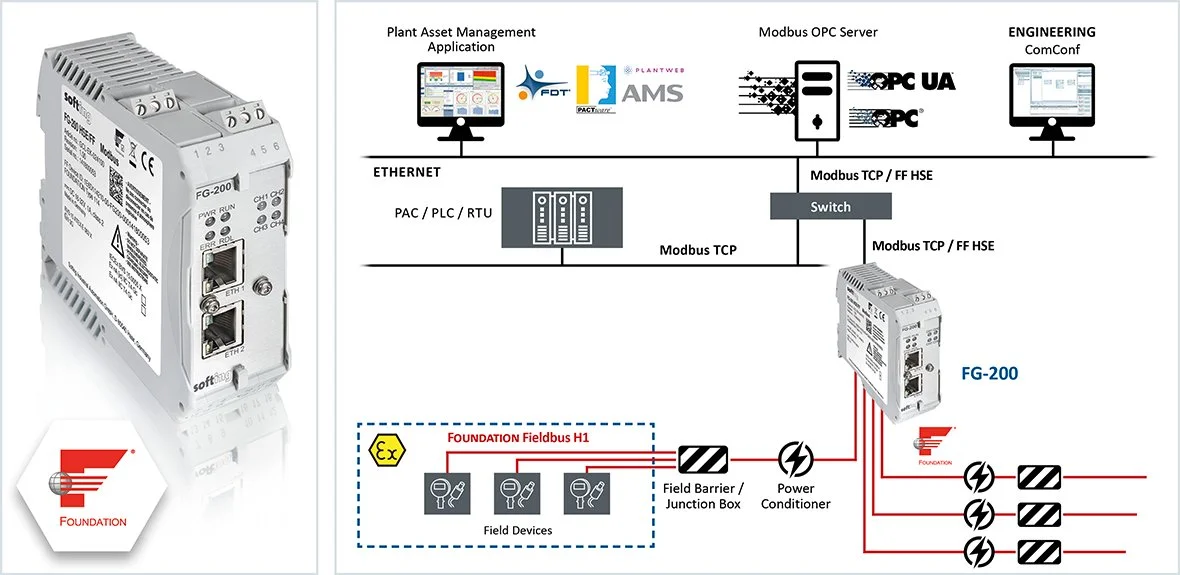

FF Network Integration via Modbus Including Redundancy With Softing’s FG-200, it is possible to integrate up to four FOUNDATION™ fieldbus (FF) H1 links into control systems supporting Modbus. The FG-200 provides redundancy and is suitable for use in hazardous areas. This device features fast access to process data, while making use of FF advantages like reduced cabling, central field device parameterization, comprehensive diagnostics,or intrinsically safe device segments. It is compatible with the R. STAHL bus-Carrier Series 9419 and Fieldbus Power Supply Series 9412 products for easy commissioning.
Technical Description
Easy Commissioning
Optional support of R. STAHL bus-Carrier Series 9419 and Fieldbus Power Supply 9412 products (cabling reduced to a minimum)
Modbus data import to web server reducing mapping efforts
Asset Management
Visitor mode avoiding interference with network behavior
Enabling asset management systems (e.g. Emerson’s AMS) and Field Device Tool (FDT) frame applications (e.g. SMART VISION, FieldMate, Field Device Manager, FieldCare, or PACTware)
Device Redundancy
Redundancy link enabling device redundancy (D-3 according to FF-593)
Automatic mirroring of configuration data
Very fast redundancy switch-over
All Necessary Tools Included
FF Configuration Tool for configuration of devices and cyclic communication
PACTware for device configuration and basic asset management tasks
FG-200: Maintenance of device types within the Communication Configurator
FG-200: Adaption of the Modbus mapping generated by the Communication Configurator
