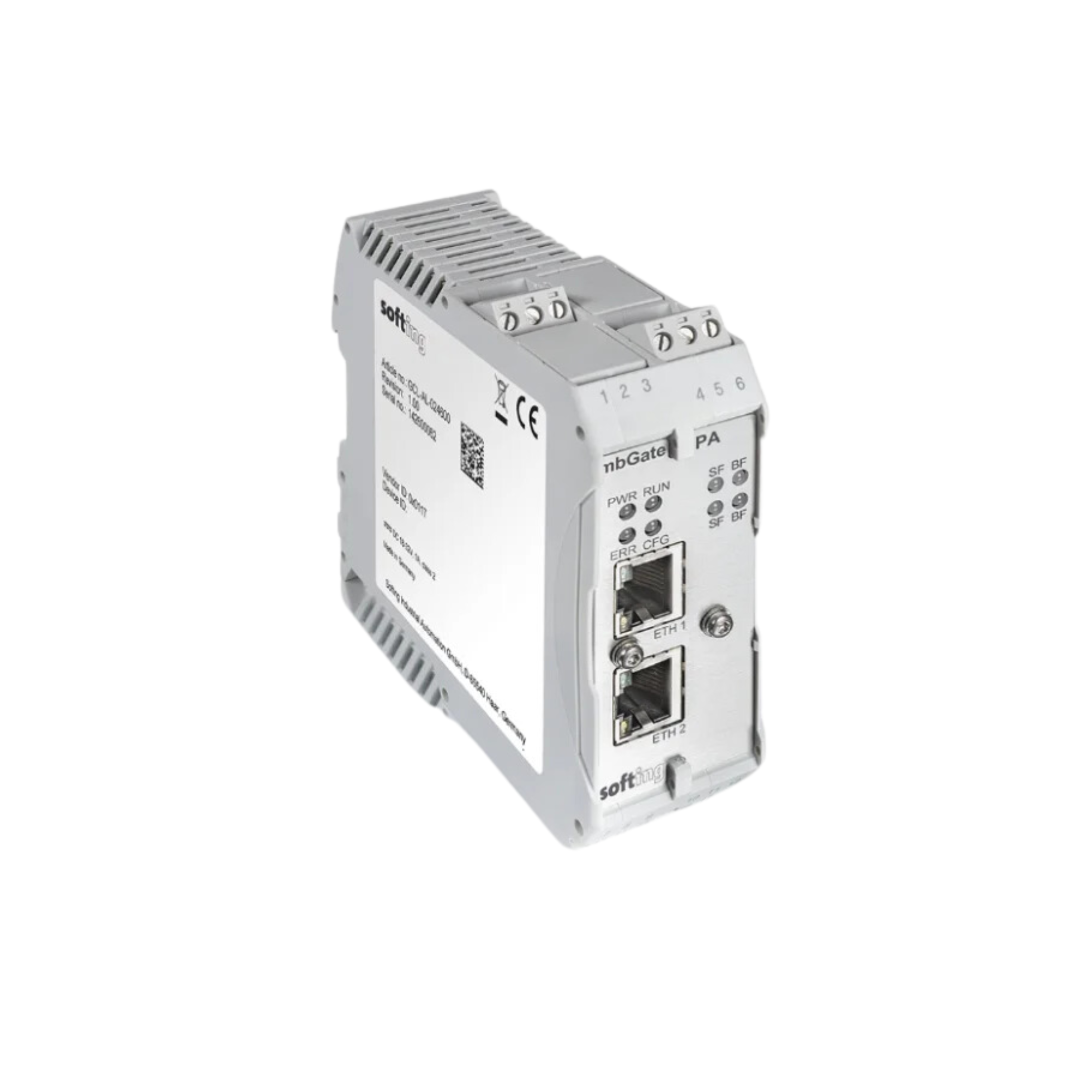

Softing Industrial – MbGate PA
Excluding GST. Volume discounts available.

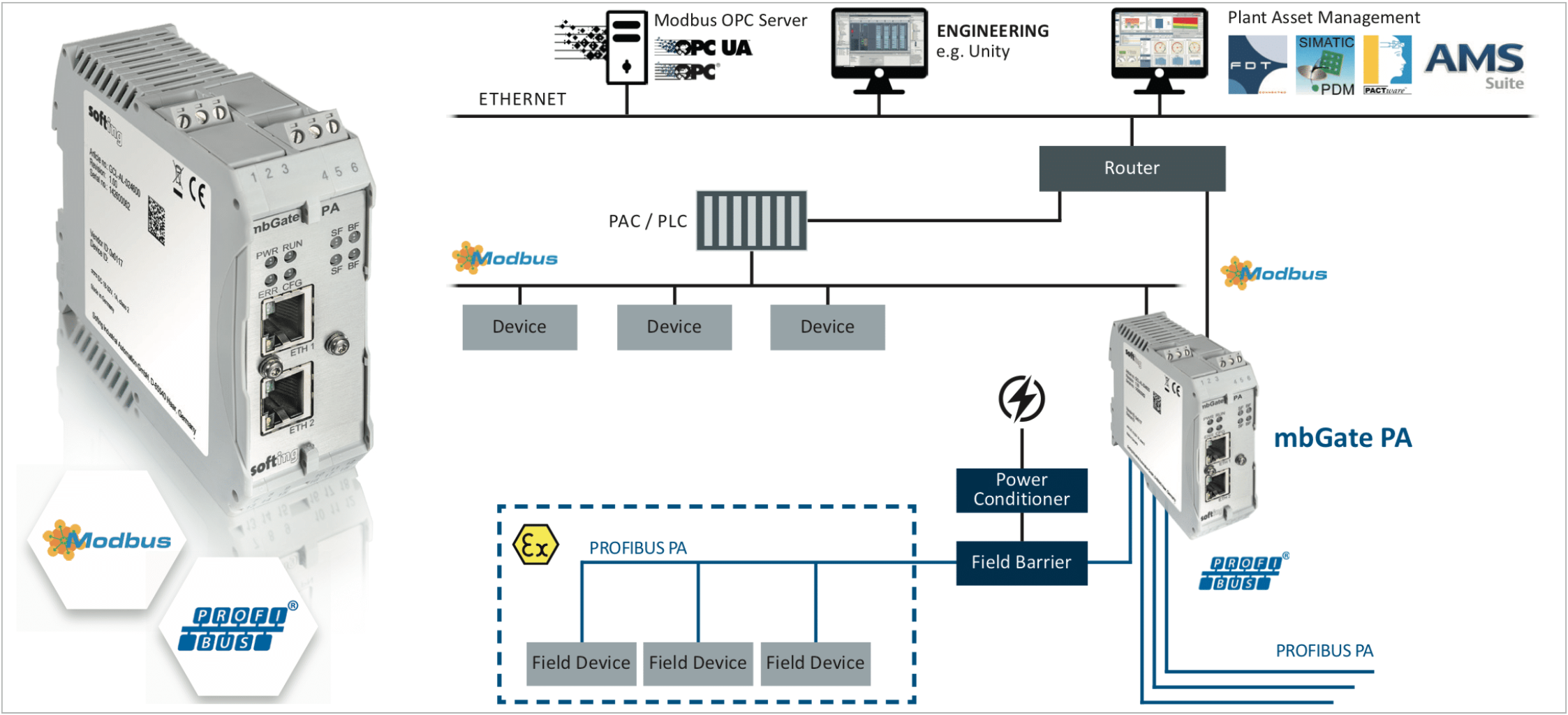

MODBUS TCP SERVER to PROFIBUS PA Master Gateway Simple connection of Profibus PA Slave devices to Modbus control systems via internal I/O mapping Re-use of Existing Power Conditioners in Technology Upgrade Projects No PROFIBUS DP Intermediate Segment required Prepared for Integration in Standard Engineering and Plant Asset Management Tools
Technical Description
Key Component for Transition to State-of-the-Art Technology
Simple replacement of installed PROFIBUS DP/PA segment couplers
Re-use of existing PROFIBUS PA segments without requiring modification
Direct Connectivity to PROFIBUS Segments
Acting as Modbus Server and PROFIBUS PA Master
Connects up to 4 PROFIBUS PA Segments to Modbus TCP
Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools
Supports major Modbus engineering tools such as Schneider Unity Pro or Siemens TIA Portal
Included CommDTM allowing use in FDT/DTM frame applications
EDD-based device parametrization using Siemens Simatic PDM
1. Profibus configuration with mbGate PA
2. Modbus Configuration with Siemens TIA Portal and mbGate PA
3. Modbus Configuration with Unity Pro and mbGate PA
