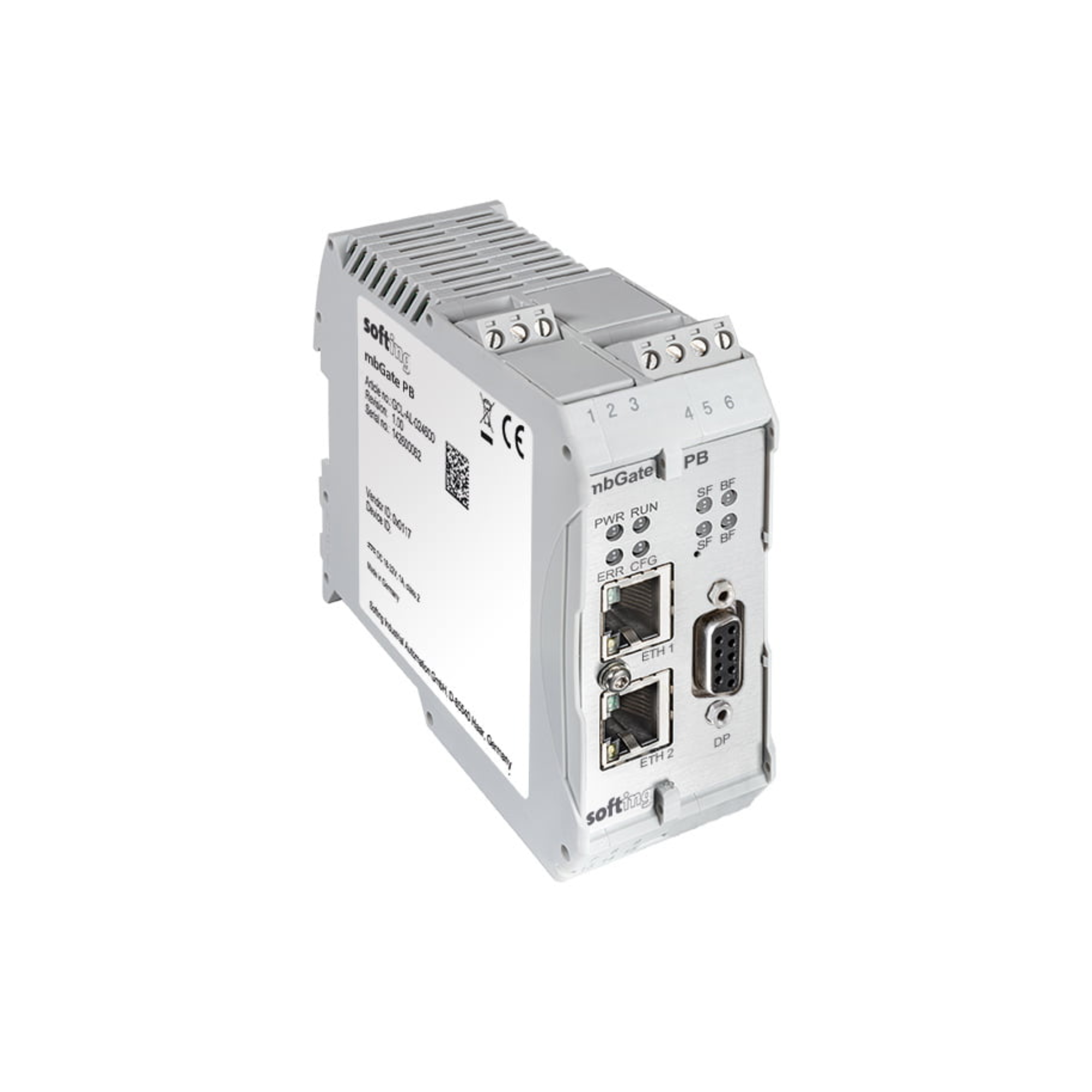

Softing Industrial – mbGate PB
Excluding GST. Volume discounts available.
MODBUS TCP SERVER to PROFIBUS PA/DP Master Gateway Simple connection of PROFIBUS Slave Devices to Modbus Control Systems via Internal I/O Mapping With mbGate PB it is possible to integrate up to 2 PROFIBUS PA segments and 1 PROFIBUS DP segment into Modbus TCP control systems. It acts as Modbus TCP Server and PROFIBUS Master. With our gateway the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It enables configuration, parameterization and plant asset management using standard industry tools.
Technical Description
Key Component for Transition to State-of-the-Art Technology
Simple replacement of installed PROFIBUS DP/PA segment couplers
Re-use of existing PROFIBUS segments without requiring modification
Direct Connectivity to PROFIBUS Segments
Single access point to PROFIBUS DP and PROFIBUS PA segments from Modbus TCP networks
Acting as Modbus TCP Server and PROFIBUS PA and PROFIBUS DP Master
Support of one PROFIBUS DP segment and up to two PROFIBUS PA segments
Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools
Supports major Modbus engineering tools such as Schneider Unity Pro or Siemens TIA Portal
Included CommDTM allowing use in FDT/DTM frame applications
EDD-based device parametrization using Siemens Simatic PDM

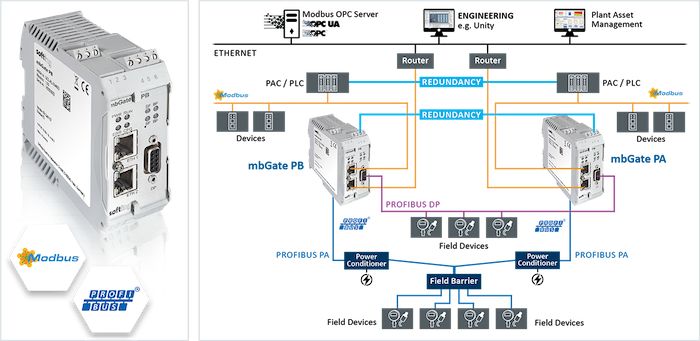

MODBUS/TCP Redundancy
Supports the use of two redundant PLCs and two redundant gateways
Easily enabled via licensing
Full control of redundant operation mode via engineering and PLC
