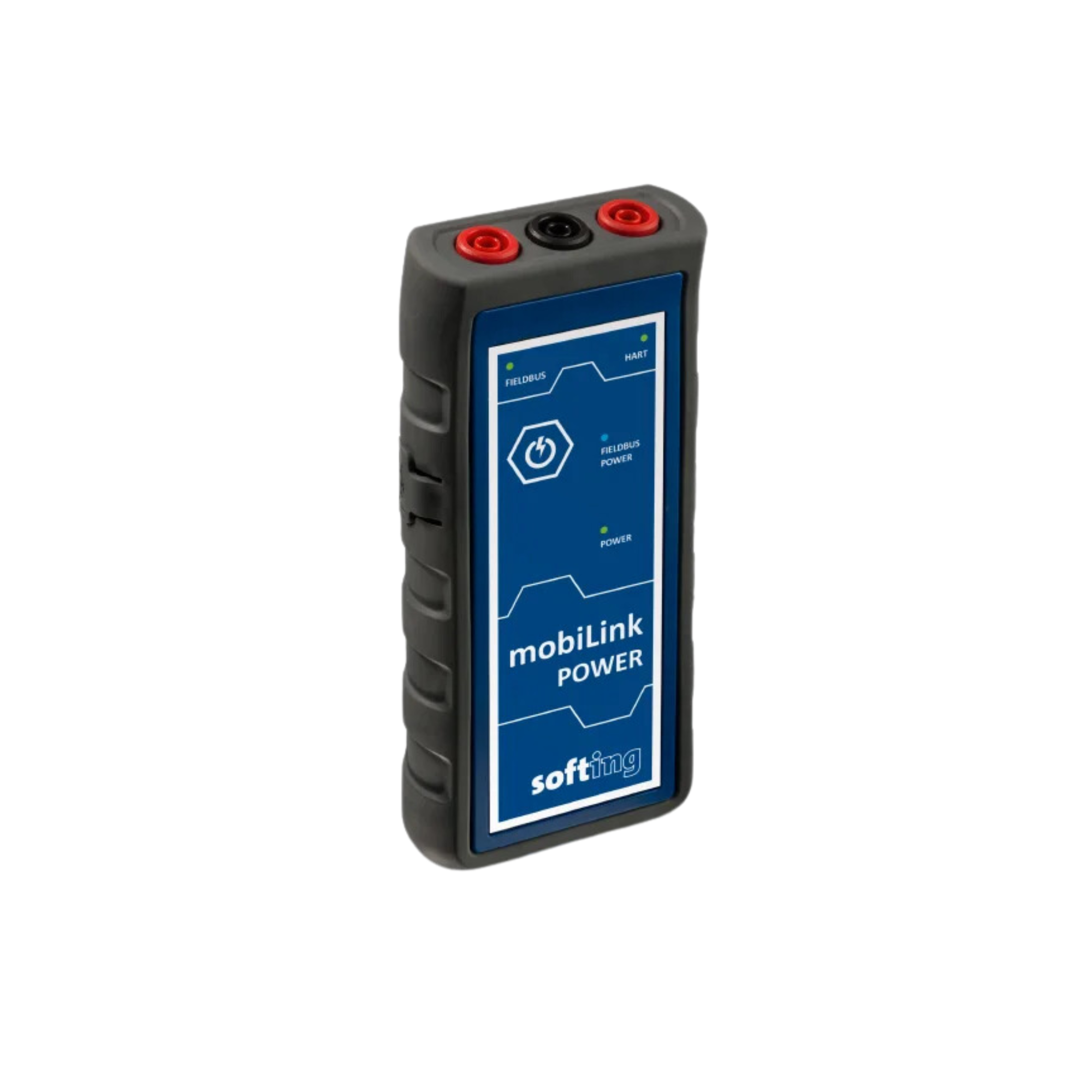

Softing Industrial – MobiLink Power
Excluding GST. Volume discounts available.

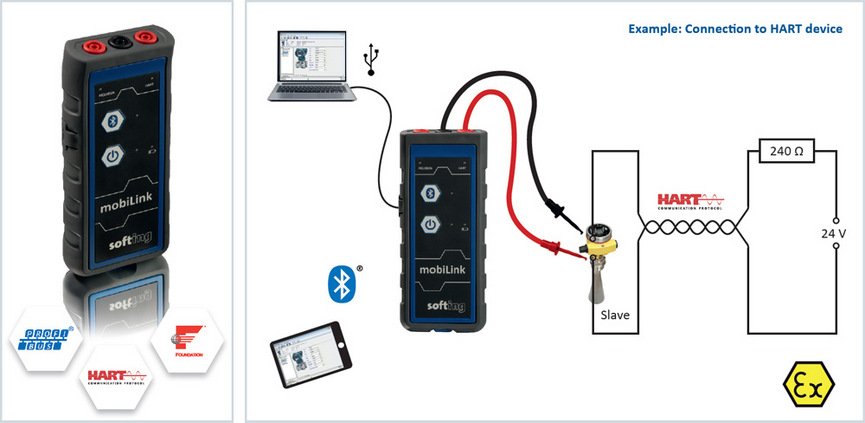

mobiLink Power enables a direct connection to the field device without it having to be located within a functioning bus infrastructure. The integrated power supply eliminates the need for additional components such as external power supply and terminating resistors for commissioning and maintenance of the field devices.
Technical Description
Single interface for the major Process Automation protocols
HART Master, Foundation Fieldbus Host and PROFIBUS PA Master included in one device
Parametrization and configuration of field devices
Diagnostics and condition monitoring
Provides the power supply for the field devices
Eliminates the need for an additional power supply and power conditioner for workbench applications
Support of FDI, FDT frame applications and major engineering tools
Compatible with Emersons instrument inspector with the FDI communication server
PACTware FDT frame application and HART communication DTM included
Communication DTM for Foundation Fieldbus and PROFIBUS PA (optional)
Foundation Fieldbus configuration tool (optional)
Application Program Interface for integration into engineering systems
Unlimited flexibility in use
mobilink Power draws power from the connected computer via USB
