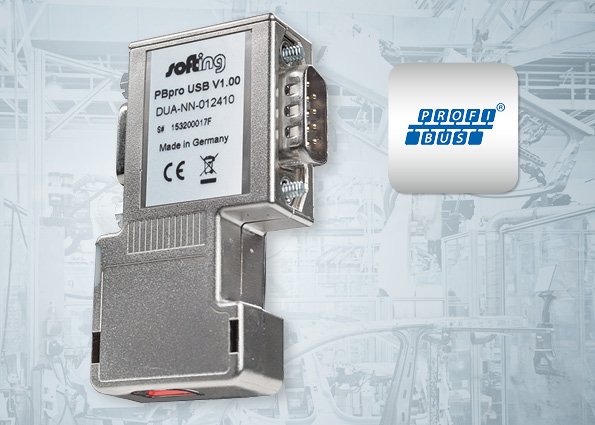

Softing Industrial – PBPro USB
Excluding GST. Volume discounts available.
High performance PROFIBUS USB interface for a wide variety of tasks from network configuration and device parameterization to plant maintenance and production data acquisition.
Technical Description
Handy Companion for Mobile Use
Matchbox-sized PROFIBUS interface
Always at hand – easily fits in any laptop bag
High-retention USB connector ensures reliable USB cable connection
Wide Area of Application
Device parameterization via FDT/DTM
Integrated with numerous parameterization and asset management systems

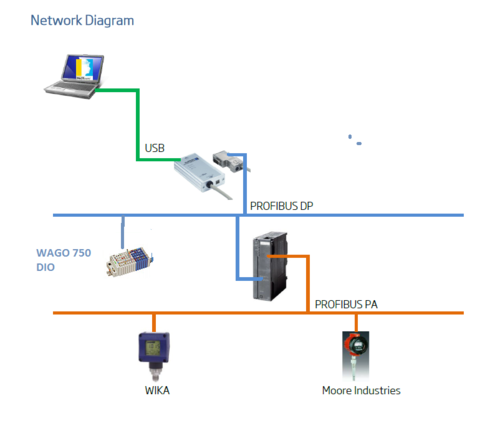

PROFIBUS connection for PC-based measurement and monitoring systems
Quick and easy PROFIBUS connection for applications such as SCADA or MES
Quick and Easy Installation
Simple connection via USB cable
Powered by USB, no external power supply required

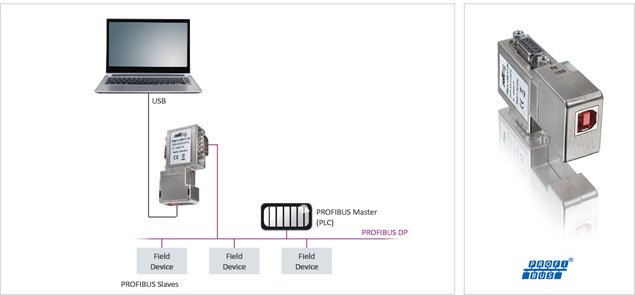

Highly integrated hardware encased in a PROFIBUS connector supporting direct attachment to the PROFIBUS segment, thus avoiding interferences caused by reflections
Same driver setup and API as for all other Softing PROFIBUS interfaces
Support of various Microsoft operating systems, including Windows 10
Efficient Integration
Free PROFIdtm PROFIBUS Communication DTM supporting parameterization of PROFIBUS devices by FDT tools
Commented sample programs for easy use of the PROFIBUS application programming interface (API) in customer applications
Quick and easy integration of OPC Client applications via optional PROFIBUS OPC Server
Connectivity with Emerson’s AMS for access to HART devices via a PROFIBUS network using Softing’s free TACC software
