Softing Industrial – pnGate PB
Excluding GST. Volume discounts available.

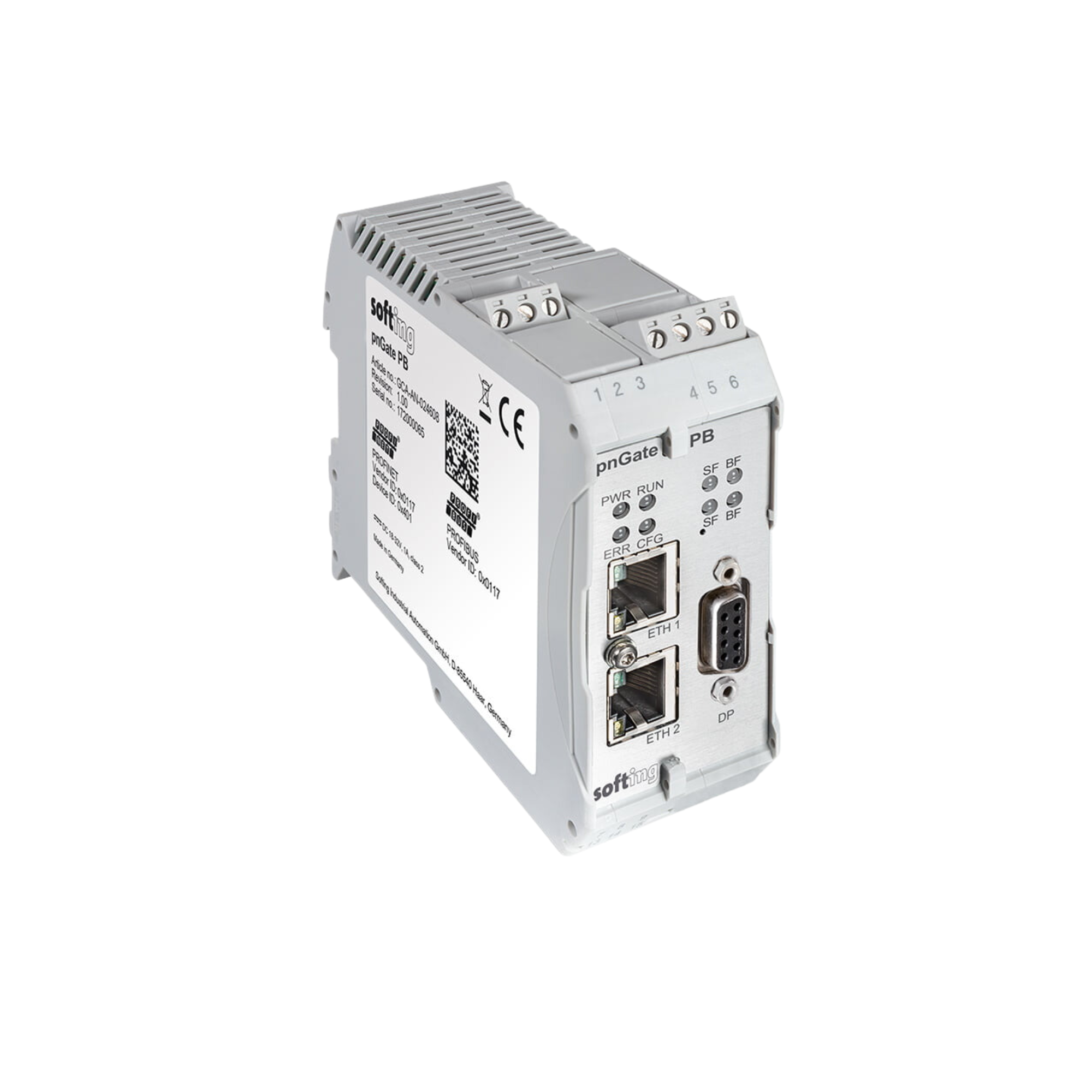

PROFINET to PROFIBUS DP/PA Master Gateway Softing’s pnGate PB allows to access to PROFIBUS DP/PA devices through virtual mapping as modular PROFINET device.
Technical Description
Key Component for Transition to State-of-the-Art Technology
Simple replacement of installed PROFIBUS DP/PA segment coupler
Re-use of existing PROFIBUS segments without requiring modification
Support of PROFINET redundancy for increased reliability

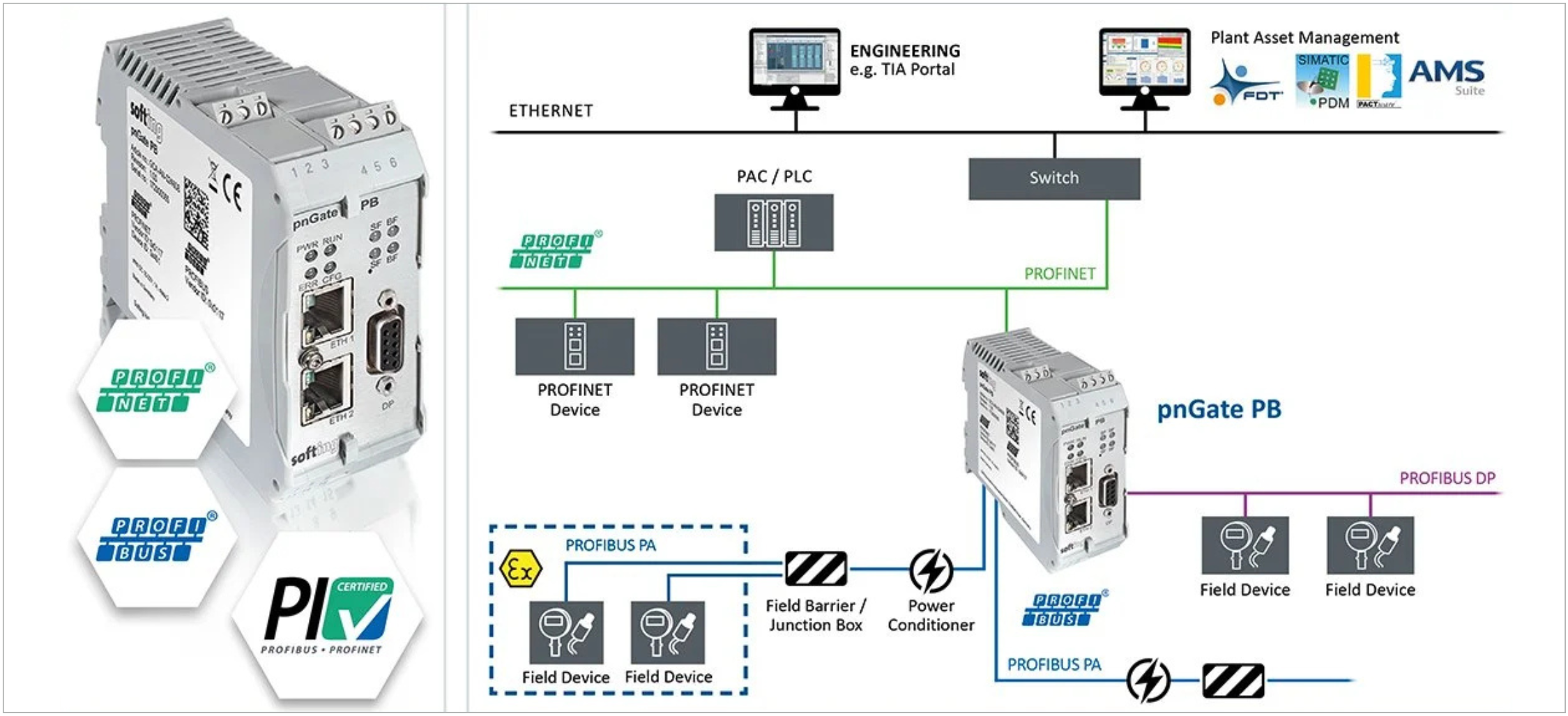

Direct Connectivity to PROFIBUS Segments
Single access point to PROFIBUS DP and PROFIBUS PA segments from PROFINET networks
Acting as PROFINET Device, PROFIBUS PA and PROFIBUS DP Master
Support of one PROFIBUS DP segment and up to two PROFIBUS PA segments
Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools
Supports major PROFINET engineering tools such as TIA Portal, Step7 and PC WORXS
Included CommDTM allowing use in FDT/DTM frame applications
EDD-based device parametrization using Siemens Simatic PDM
Videos
How to configure pnGate PA/PB in TIA Portal:
