Softing Industrial – PROFIBUS Tester 5
Excluding GST. Volume discounts available.

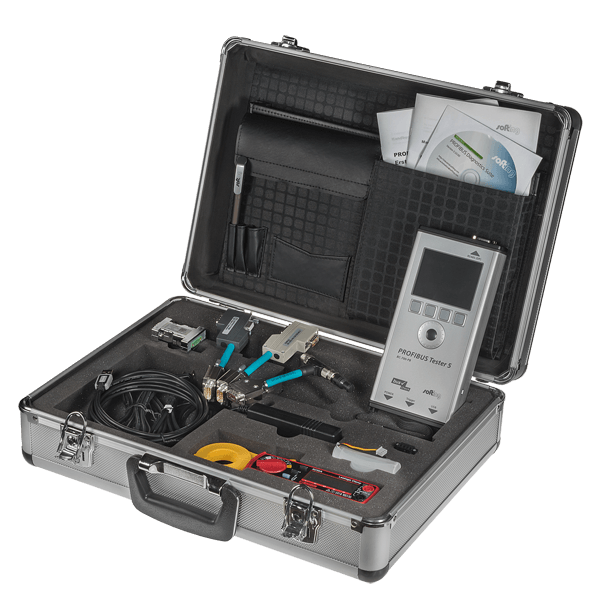

Quick and Easy Testing of Bus Physics, Bus Communication and Cabling #PROFIBUS. The PROFIBUS Tester 5 (BC-700-PB) is a powerful diagnostic and troubleshooting tool for testing the cables, measuring the signals and analyzing the communication of PROFIBUS networks. It is battery-powered and provides a graphical display, allowing for quick results when working in stand-alone mode. Optionally, also PROFIBUS PA network can be analyzed. In addition, the BC-700-PB supports the export of test results for advanced analysis.
Technical Description
Testing Bus Cabling, Bus Physics and Bus Communication “All-In-One”
Combination of signal tester, storage oscilloscope, protocol analyzer, master simulator and cable tester functionality in a single diagnostics tool
Stand-alone mode plus extended PC-based diagnostics
Suited for installation, setup and commissioning, documentation, acceptance testing, network optimization, preventive maintenance, troubleshooting as well as laboratory tests

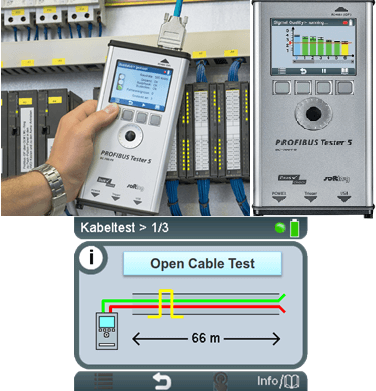

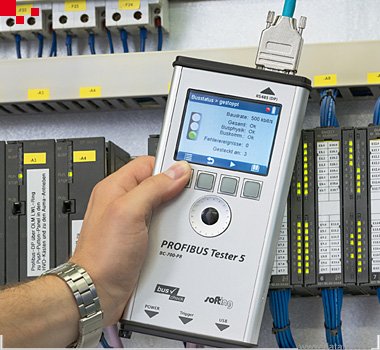

Highly Mobile Bus Tester for Testing Even Without a Notebook
Battery-powered operation without the need for additional power supply
Graphical display providing easy-to-understand presentation oftest results
Comprehensive network tests in stand-alone mode without requiring a notebook
Enhanced Diagnostic Features Through Complementing PC-Based Software
Many additional features for executing, analyzing and managing bus tests in PC mode (Trend, Topology Scan, Master Simulator, Oscilloscope, Frame Analyzer)
Quick Test and User-Controlled Test for easy network status assessment at the push of a button
Generation of test reports describing the actual status of the PROFIBUS installation
Ideal for less experienced users as well as for Fieldbus specialists
Optional Measuring Adapter for MBP (Manchester Coded Bus Powered) Physics
Specific signal analysis supporting MBP Physics (feeding voltage, signal deviation, signal polarity, bitrate divergence)
Complete protocol analysis directly at PROFIBUS PA segment
