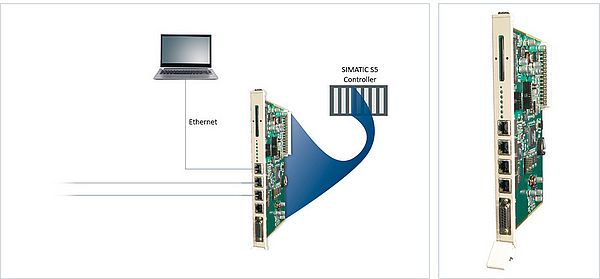

Turbo Ethernet for Siemens SIMATIC S5 S5-TCP/IP-100 is an Ethernet interface for the SIMATIC S5 from Siemens. With its 10 MBit/s and 100 MBit/s, the communication processor offers maximum-speed data transmission rates. It communicates with the SIMATIC S7 and SIMATIC S5 controllers of Siemens as well as with Modbus TCP interfaces from Schneider and Wago, among others.
Technical Description
Communication
Processing of TCP/IP, ISO on TCP (RFC1006) and Sinec H1 at the same time
Communication with SIMATIC S5 und SIMATIC S7 controllers via ISO on TCP (RFC1006).
Communication with controller from Schneider Group, Beckhoff, Wago and others via Modbus TCP
Transmission of raw data (send/receive communication)
Chance to acquire and visualize process data via OPC through pre-parameterized standard connections for layer 7 communication
Connection with PC or programming device either directly via serial interface or indirectly via bus path
Support of event-controlled data communication via Fetch on Event
Connection of additional field devices or setup of small local networks through integrated 4-port switch
Security
High security standard of data transmission due to continuous connection monitoring
Optional password protection
Storage of configuration during power failure
Additional security features on CompactFlash card
Easy-to-Handle Diagnostics
Single connection diagnosis and overview of all connections
PLC interface diagnosis
Separate monitoring of standard connections and Fetch on Event connections
Network status, number of sent and received telegrams and evaluation of Indicator Word
