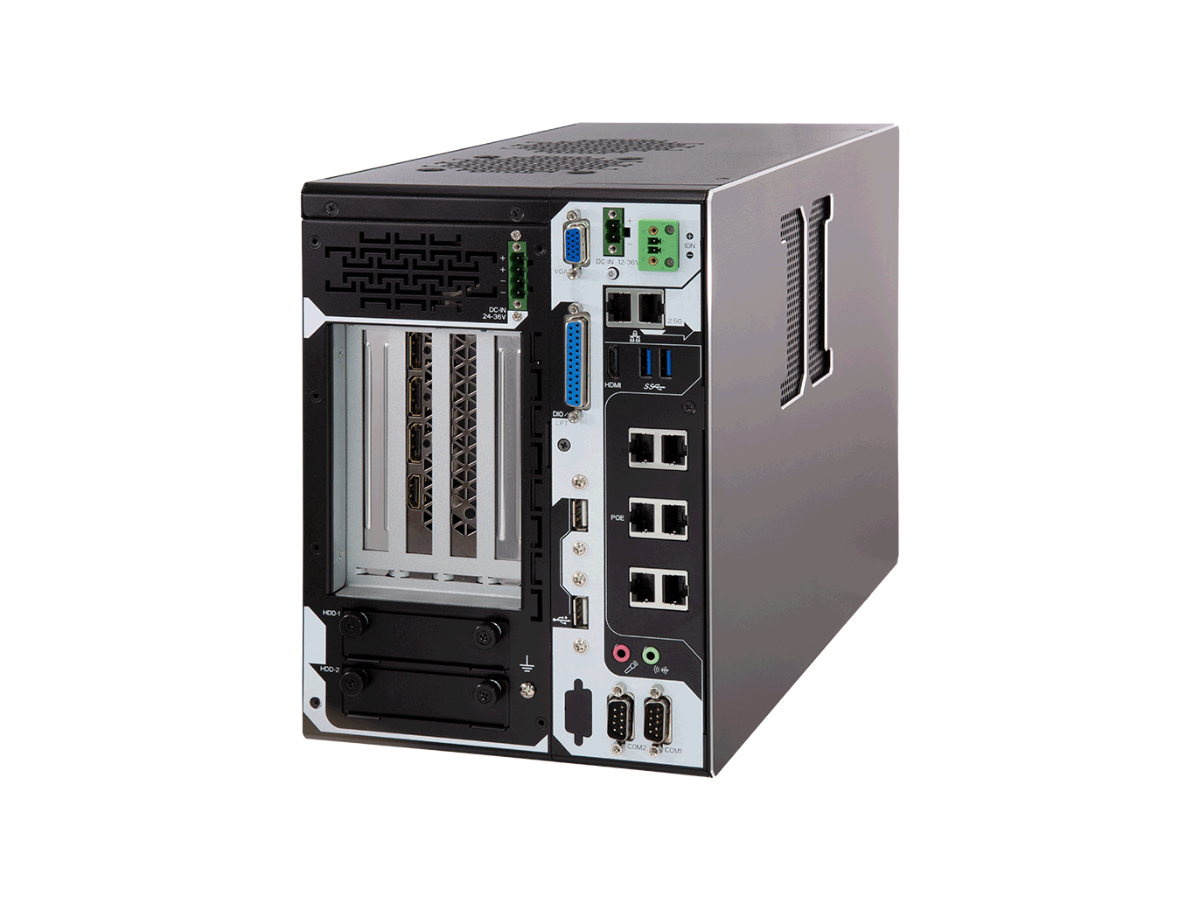

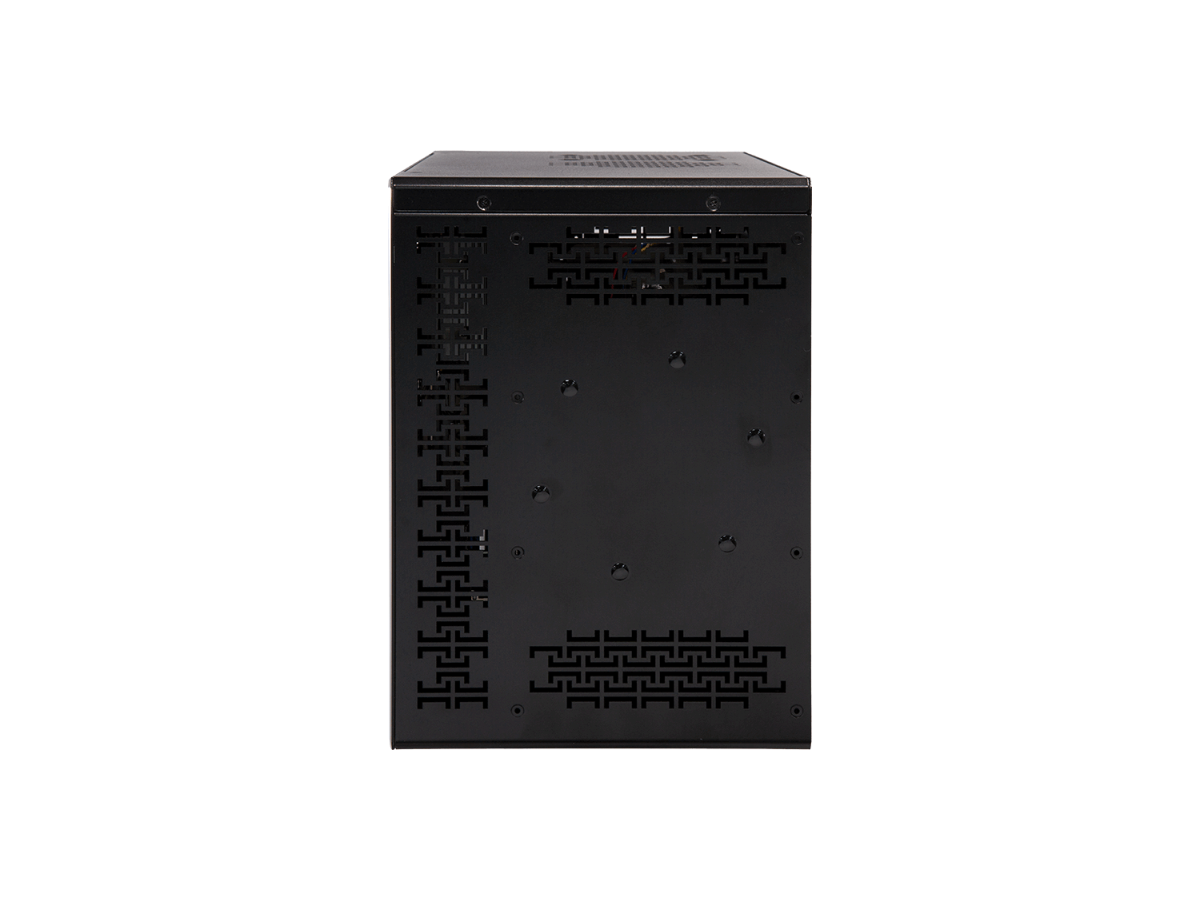

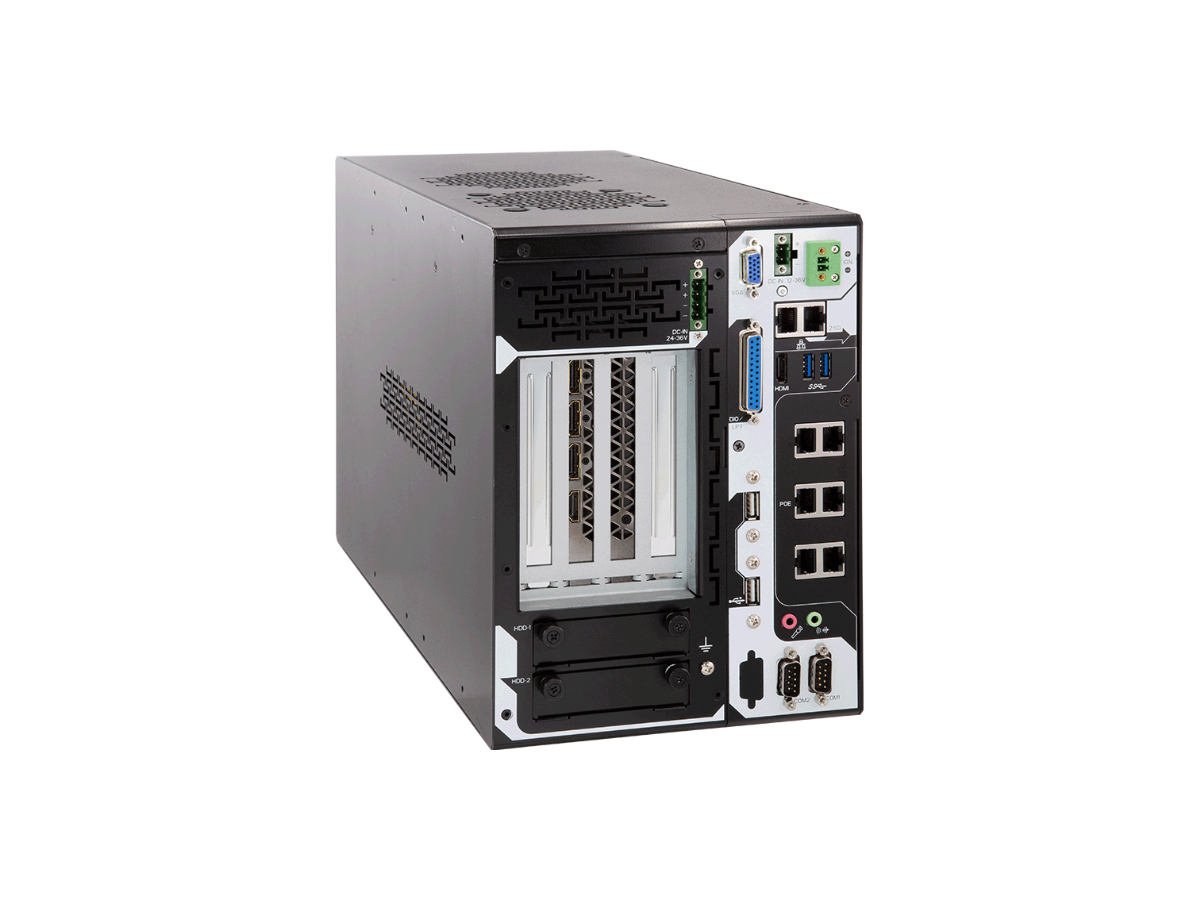

ARBOR - FPC-9108-P6-G3 Ruggedized Edge AI Computing
FPC-9108-P6-G3
Ruggedized Edge AI Computing Platform Supporting NVIDIA® GeForce RTX 3090 GPU, Intel ®10th Gen Xeon® Core™ Processor with 6 GbE PoE
Features
- Compatible with the Intel® OpenVINO™ toolkit
- Intel® 10th Gen (Comet Lake-S) with W480E chipset
- Supports NVIDIA GeForce RTX 30 series GPU up to 350W (up to 334.6mm length)
- Wide range DC power input (12~36V)
- HDMI x 1 + VGA x1 (2 independent displays)
- Power on/off delay control/ Configurable ignition power control
- TPM 2.0 support
- 2 x outside accessible SATA SSD, supporting RAID 0,1
- 2 x USB3.2 supports up to 10Gbps data transfer rate
- Front-accessible I/O support
- PWM FAN control support
- 6 x 802.3af Gigabit PoE ports
- 1 x M.2 (NGFF) B-Key(2242/3052/2280) socket for storge or 5G / LTE
- 1 x M.2 (NGFF) E-Key(2230) socket for Wi-Fi / BT
Specification
System
| CPU | 10th generation Intel® Xeon® Core™ i9 / i7 / i5 / i3 processor in LGA1200 socket |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 (i9/ i7 CPU)/2666( i5/ i3 CPU)/ 2400 MHz (Pentium/ Celeron CPU) SDRAM up to 64GB (ECC / Non-ECC) |
| Chipset | Intel® W480E |
| Graphics | Integrated Intel® HD Graphics |
| ATA | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
| LAN Chipset | 1 x Intel® WGI225LM 2.5GbE LAN 1 x Intel® WGI219LM PCIe controller w/ iAMT 14.0 |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| Serial Port | 2 x RS-232 / 422 / 485 configurable (default RS-232) |
|---|---|
| USB Port | 2 x USB 3.2 Gen 2 (10Gbps) / 2.0 ports 2 x USB 2.0 ports |
| LAN | 2 x RJ-45 ports for GbE / 2.5GbE 6 x RJ-45 ports for PoE (Power budget 60W) |
| Video Port | 1 x HDMI 1 x DB-15 female connector for analog RGB |
| Expansion Bus | 1 x mini-PCI Express slots interconnected with SIM card sockets for optional Wi-Fi / BT / 3G / LTE / GPS (PCIe x1 + USB 2.0, full size) 1 x M.2 E key (2230) with PCIe x1 + USB2.0, for wireless 1 x M.2 B key (2242 / 3052 / 2280) w/ (PCIe x2 + USB 3.0 + SATA) interconnected with SIM for 5G / LTE expansion or for storage (either one) 1 x PCIe x16 slot for 350W GPU card 3 x PCI slots |
| Digital I/O Port | 1 x DB25 connector for DIO (8 in / 8 out) port |
| Audio | Mic-in / Line-out |
Environmental
| Operating Temp. | 80W TDP CPU : -20 ~ 50°C (-4 ~ 122°F), 65W TDP CPU : -20 ~ 55°C (-4 ~ 131°F), 35W TDP CPU : -20 ~ 70°C (-4 ~ 158°F), w/ NVIDIA® RTX-3090 : -20 ~ 45°C (-4 ~112°F) |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 50°C (non-condensing) |
| Vibration | Comply with MIL-STD-810G, Method 514.6, Category 4 w/ SSD |
| Shock | Comply with MIL-STD-810G, Method 516.6,Procedure I,Table 516.6-II, 20G |
OS Support
| System | Windows 10 IOT Enterprise 2019 Linux (Kernel: 4.9) |
|---|
Storage
| Type | 2 x 2.5” drive bays (outside accessible) 1 x M.2 B key (2242 / 3052 / 2280) w/ (PCIe x 2 + USB3.0 + SATA ) interconnected with SIM for 5G / LTE expansion or storage (either one) |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power Requirement
| Main Power Input | DC 12~36V input (w/ 2-pin DC input terminal block) |
|---|---|
| Secondary Power Input | DC 24-36V input (w/ 4-pin DC input terminal block for graphic cards power support) |
| Ignition Switch | 2-pin terminal block: IGN, GND |
Mechanical
| Construction | Metal |
|---|---|
| Mounting | Wall-mount |
| Weight | 7.4kg (16.31Ib) |
| Dimensions (W x D x H) | 181 x 380 x 250 mm |
Ordering Information
| FPC-9108-P6-G3 | Ruggedized Edge AI Computing Platform supporting NVIDIA®RTX-3090 GPU Card, Intel® 10th Gen. Xeon® Core™ Processor with 6 x GbE PoE (Up to 80W TDP CPU) |
|---|
Accessories
Optional Accessories
-
PAC-180W6C-FSP
180W AC / DC 24V adapter kit (For System) -
PAC-480W6C-MW
480W AC / DC 24V DIN Rail adapter kit (For GPU Box) -
WMK-7000
Wall-mount kit for FPC-7XXX Series
Optional Configuration (*CTOS Kit)
-
MK-4C-4G / 8G / 16G / 32G
DDR4-2400 4GB / 8GB / 16GB / 32GB (DDR4-2933) SDRAM DIMM kit -
WiFi-IN2550
Intel® AX200NGW M.2 Wi-Fi 6 module w/ 2 x 30cm internal wires -
ANT-D11
1 x Wi-Fi Dual-band 2.4G/5G antenna -
ANT-H11
2dBi HSUPA antenna Kit -
Xeon® W-1250E
Intel® Xeon® W-1250E processor, L2/12M, 3.5G -
Core™ i9-10900E
Intel® 10th Gen. Core™ i9-10900E processor, L2/20M, 2.8G -
Core™ i9-10900TE
Intel® 10th Gen. Core™ i9-10900TE processor, L2/20M, 1.8G -
Core™ i7-10700E
Intel® 10th Gen. Core™ i7-10700E processor, L2/16M, 2.9G -
Core™ i7-10700TE
Intel® 10th Gen. Core™ i7-10700TE processor, L2/16M, 2.0G -
Core™ i5-10500E
Intel® 10th Gen. Core™ i5-10500E processor, L2/12M, 3.1G -
Core™ i5-10500TE
Intel® 10th Gen. Core™ i5-10500TE processor, L2/12M, 2.3G -
Core™ i3-10100E
Intel® 10th Gen. Core™ i3-10100E processor, L2/6M, 3.2G -
Core™ i3-10100TE
Intel® 10th Gen. Core™ i3-10100TE processor, L2/6M, 2.3G
