ARBOR - SB-244 Industrial Fanless PC (TGLU Series/1N97)

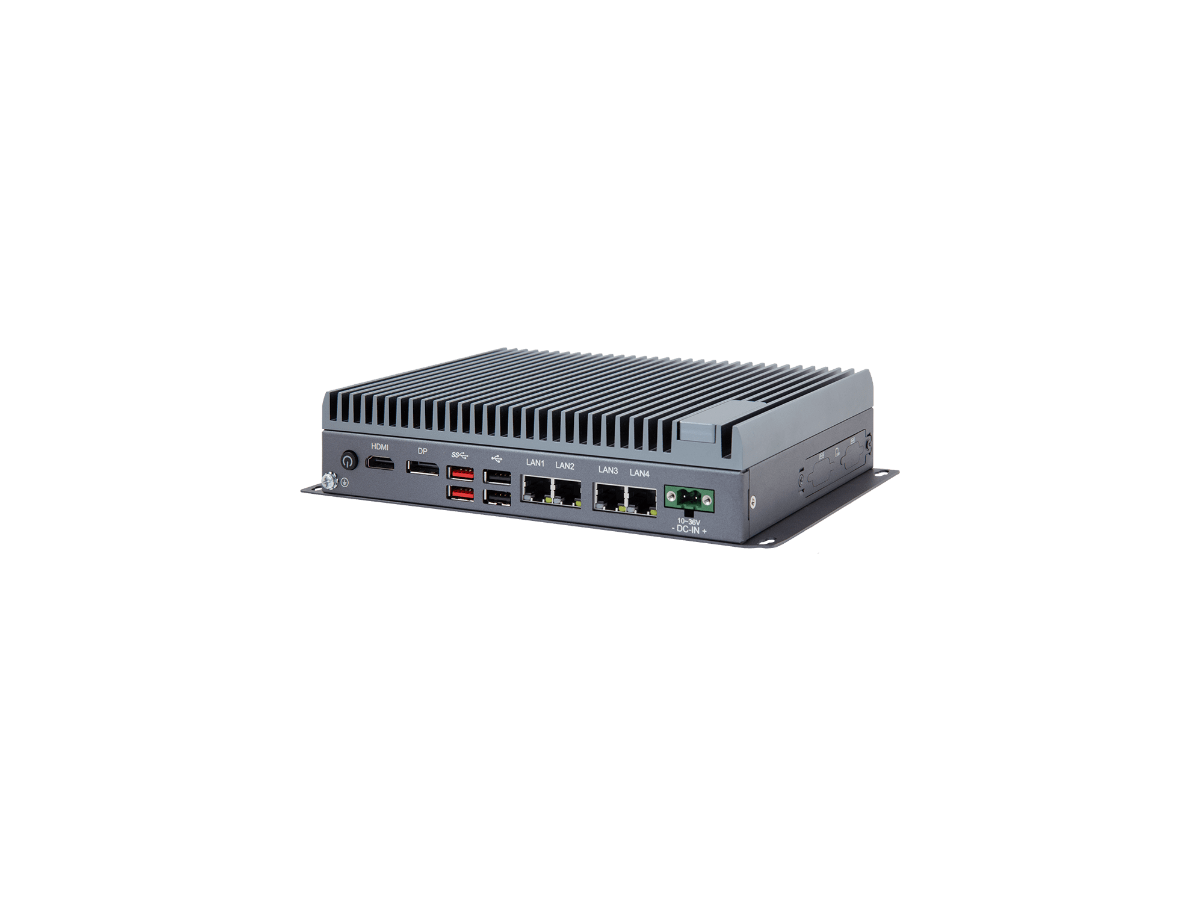

SB-244 Industrial Fanless PC TGLU Series
Industrial Fanless PC w/ Intel® Tiger lake i3-1115G4 / i5-1135G7 Processo
SB-244-1N97 Industrial Fanless PC
Industrial Fanless PC w/ Intel® Alder Lake N Series Processor
Features
- Intel® Tiger lake i3/i5 Processors(TGLU Series) / Intel® Processor N97(Up to 3.6GHz) (1N97)
- 1 x SDRAM DDR4 3200 MHz (max. 32G)
- Support 4 Gigabit LAN
- Support DP/HDMI 3 independent video output
Specification
System
| CPU |
TGLU Series: Intel® Tiger lake 1N97: Intel® Processor N97 (6M Cache, Up to 3.6GHz) |
|---|---|
| Memory | 1 x SDRAM DDR4 3200 MHz (max. 32G) 4GB WT DDR4 SO-DIMM pre-installed*(CTOS) |
| Graphics | Intel® Iris® Xe graphics, up to 96 graphics execution units (EU) |
| LAN Chipset | 1 x Intel i219LM GbE PHY 3 x Intel i210 GbE Controllers (Colay 1211GbE) |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
Storage
| Device | 1 x SATA 3.1 (2.5” HD) 1 x M.2 2242 (SATA3.0) 128GB M.2 WT SSD pre-installed*(CTOS) |
|---|
Audio
| Type | 1 x Audio(Line-out & Mic-in) Chip 888S/897 |
|---|
Power System
| Power Input | 10-36VDC, 2-pin phoenix connector |
|---|
OS
| System | Windows 10, Ubuntu 20.04 |
|---|
Qualification
| Certification | CE, FCC |
|---|

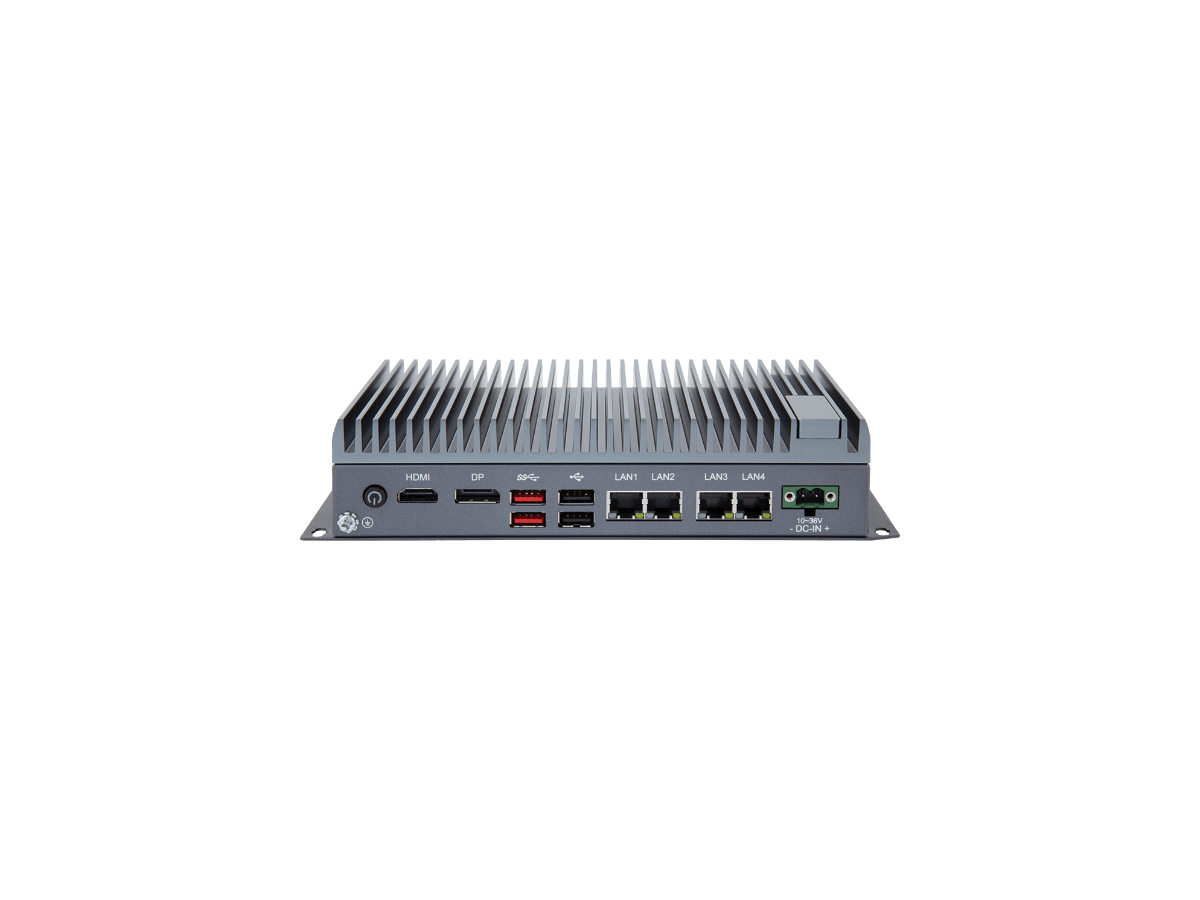

External I/O

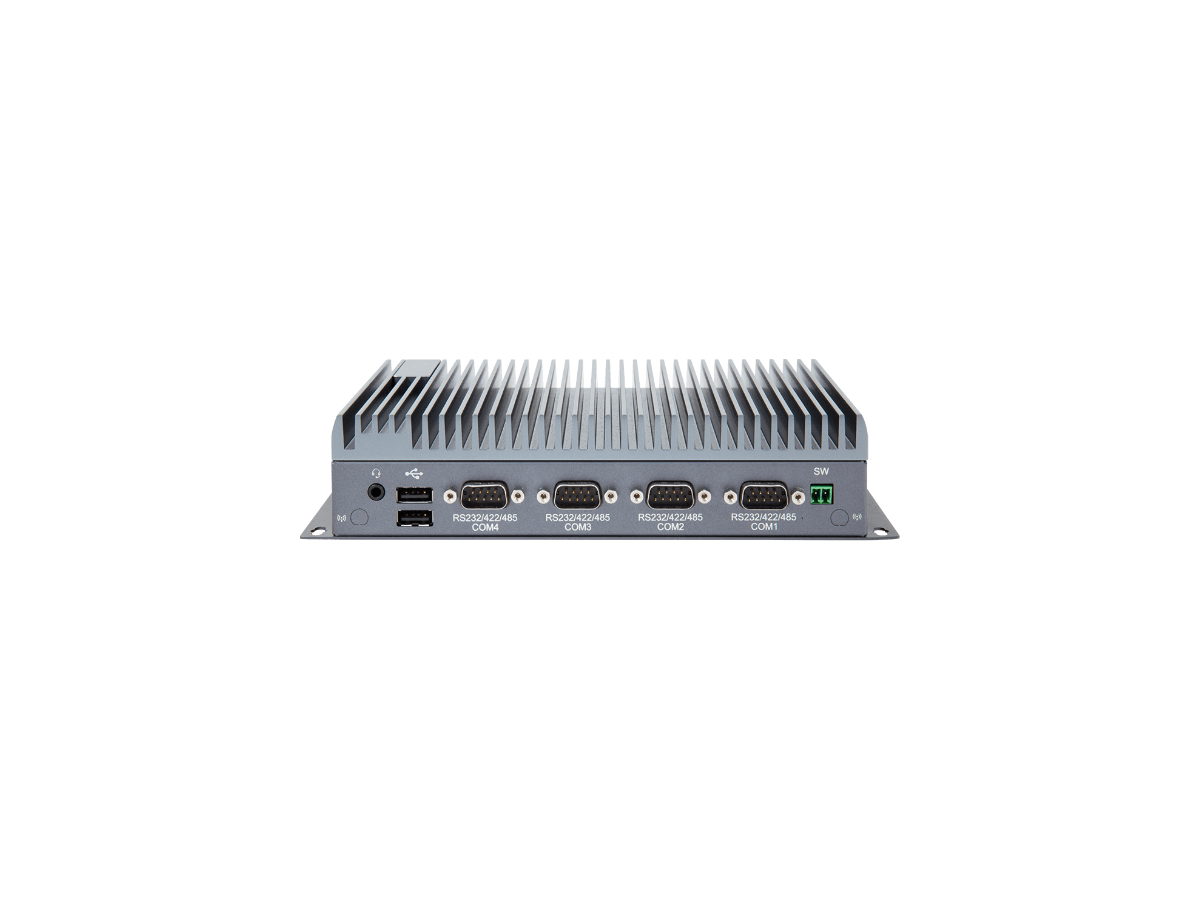

| Serial Ports | 4 x RS232/RS422/RS485 (default RS-232) with auto flow control |
|---|---|
| USB Ports | 3 x USB3.2 Gen. 2 3 x USB2.0 |
| LAN | 4 x RJ45 |
| Video Ports | 2 x HDMI up to 4K x 2K x 24bpp @ 24 Hz 1 x DP up to 4096 x 2304 x 36bpp @ 60 Hz |
| Remote | 1 x SW |
Internal I/O
| Expansion Slot | 1 x E-Key M.2 2230 slot (PCIe X1 / USB2.0 signal supported) 1 x mPCIe (PCIe/ USB2.0/USB 3.0 signal supported) |
|---|---|
| SIM Card | 1 x SIM Card socket for 3G/4G module |
| USB 2.0 Ports | 2 x USB2.0 by Pinhead |
| COM Ports | 2 x COM232 by Pinhead |
| GPIO | 1 x 8 bit programmable GPIO pin header (3.3 | 5V Jump adjustable) |
Mechanical
| Button | 1 x Power button W/Led |
|---|---|
| Chassis | Aluminum Alloy |
| Mounting | Desk-Mount, Wall-Mount, DIN-Rail(optional) VESA-mount (75x75mm, 100x100mm optional) |
| Dimensions (W x H x D) | 224 x 140 x 49.2 mm |
| Weight (Net) | 1.6kg |
Environmental
| Operating Temp. | -20 ~ 60°C |
|---|---|
| Storage Temp. | -40 ~ 85°C |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Random Vibration | 5~500Hz, 2Grms, operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
Ordering Information
| SB-244-11115G4 | Barebone Fanless System with, Intel Tiger lake i3-1115G4, 4xLAN, 4xCOM(up to 6), 6xUSB, 2xHDMI, 1xDP, DC 10-36V power input |
|---|---|
| SB-244-11115G4-R4S128 | Fanless System with 4GB RAM & 128GB SSD, Intel Tiger lake i3-1115G4, 4xLAN, 4xCOM(up to 6), 6xUSB, 2xHDMI, 1xDP, DC 10-36V power input |
| SB-244-11135G7 | Barebone Fanless System with, Intel Tiger lake i5-1135G7, 4xLAN, 4xCOM(up to 6), 6xUSB, 2xHDMI, 1xDP, DC 10-36V power input |
| SB-244-11135G7-R4S128 | Fanless System with 4GB RAM & 128GB SSD, Intel Tiger lake i5-1135G7, 4xLAN, 4xCOM(up to 6), 6xUSB, 2xHDMI, 1xDP, DC 10-36V power input |
Accessories
Optional Accessories
| PAC-120W-FSP-SPA R1.0 | AC/DC ADAPTER KIT (W/UKCA),19V,120W,2 WIRE w/ USA POWER CORD |
|---|---|
| PAC-120W-FSP-SPA R1.1 | AC/DC ADAPTER KIT (W/UKCA),19V,120W,2 WIRE w/ EU POWER CORD |
| PAC-120W-FSP-SPA R1.2 | AC/DC ADAPTER KIT (W/UKCA),19V,120W,2 WIRE w/ UK POWER CORD |
| PAC-120W-FSP-SPA R1.3 | AC/DC ADAPTER KIT (W/UKCA),19V,120W,2 WIRE w/ IN POWER CORD |
| 2T71A7Y00-JTW-G | VESA BRACKET, SECC, Gray Paint, 165*115*10.5mm for SB-142-2J64,SB-244-11135G7 |
