ARBOR - SP-151C Industrial Fanless 15.6" Panel PC(TGLU/1J64)
SP-151C TGLU Series
Industrial Fanless 15.6" Panel PC, w/ Intel® 11th Gen. Tiger Lake-U i5/i3 Processors
SP-151C-1J64
Industrial Fanless 15.6" 10 Points Multitouch Panel PC, Intel® Elkhart Lake J6412 Platform
- Onboard Intel® 11th Gen. Core™ Tiger lake U i5/i3 Processors(TGLU Series)/Onboard Intel® Celeron® J6412 quad core CPU, main frequency can reach to 2.6GHz(1J64)
- 15.6 inches LCD panel with LED backlight, front panel support IP66
- Industrial-grade 10 points project capacitive touch screen
- Support Mini-PCIe/M.2 extension of multiple modules
- Support Three GbE LAN
- Support remote ON-OFF
- Grounding protection for product shell
- Support 1 x 2.5 inches HDD/SSD expansion
- Support standard VESA and panel mount
Specification
System
| CPU |
TGLU Series: Onboard Intel® 11th Gen. Core™ 1J64: Intel® Elkhart Lake Celeron® J6412 processor (2.00 GHz/2.6GHz) |
|---|---|
| Memory | 1 x DDR4 3200 MHz SO-DIMM, up to 32 GB |
| Graphics | Intel® UHD Graphics for 11th Gen., Intel® Processors & Intel® Iris® Xe Graphics |
| LAN Chipset | 1 x Intel® I226-V 2.5GbE controller 2 x Intel® I210-AT GbE controllers |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
Storage
| Device | 1 x M.2 2242 SSD slot |
|---|
Audio
| Type | 1 x Audio(Line-out & Mic-in 2 in 1), ALC888S |
|---|---|
| Speaker | 2 x 4Ω3W speakers |
LCD Display
| Size / Type | 15.6" TFT LCD Panel |
|---|---|
| Max. Resolution | 1920 x 1080 |
| Ratio | 16:9 |
| Luminance | 450 nits |
| Contrast Ratio | 800:1 |
| Backlight | LED Backlight |
| Backlight Lifetime | 50000 Hrs |
| Touch Type | P-cap Multi-Touch |
| Touch | 35,000,000 times |
| View Angle | CR ≥ 10, 89° (T)/89° (B)/89° (L)/89° (R) |
Power System
| Power Input | DC 10~36V 1 x Power Connector (2P Phoenix) |
|---|
OS
| OS | Windows 10, Linux |
|---|
Qualification
| Certification | CE, FCC |
|---|

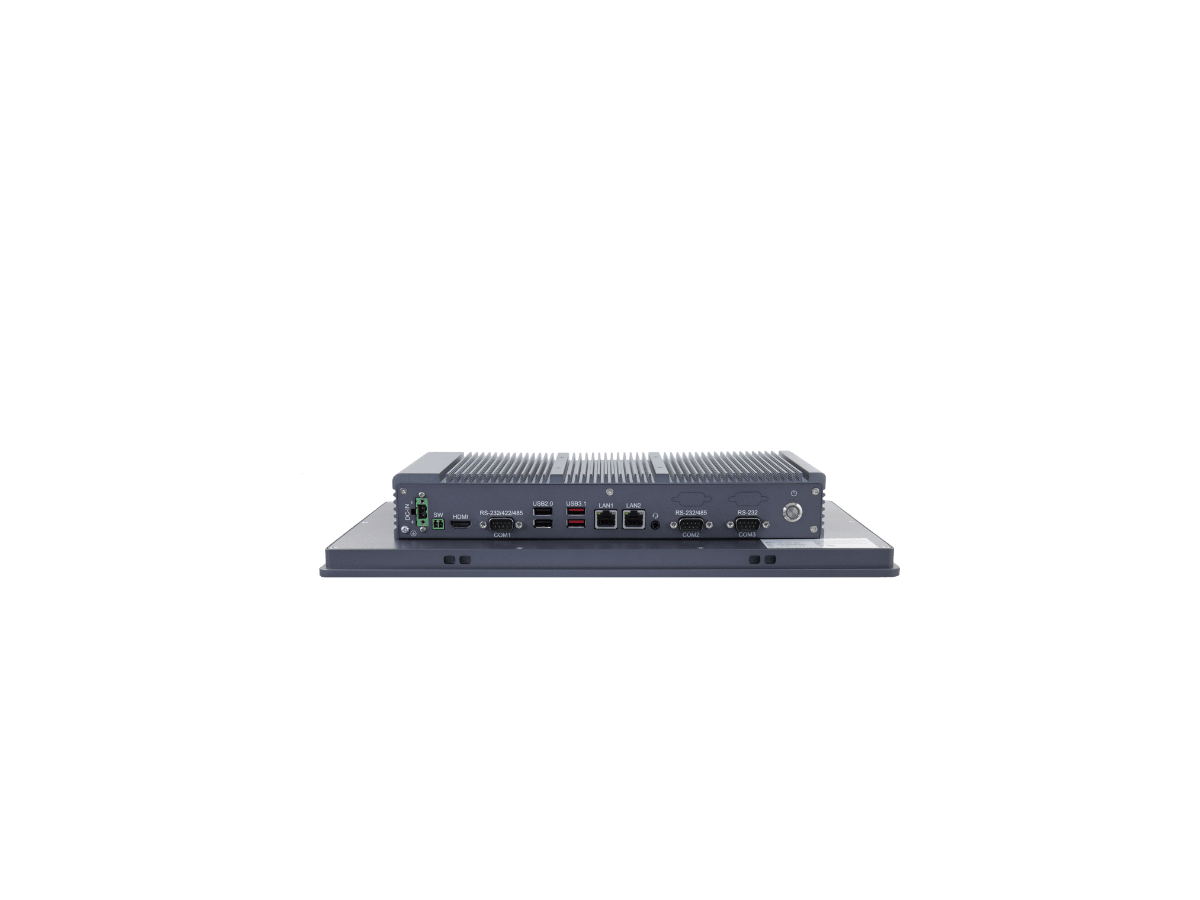

External I/O
| Serial Ports | 2 x RS232/422/485 (COM1/2) with DB9 2 x RS232/RS485, 2 x RS232 with 12PIN Phoenix connector |
|---|---|
| USB Ports | 4 x USB 3.1 |
| LAN | 3 x RJ45 |
| Video Ports | 1 x HDMI (up to 4096 x 2304@60Hz) |
| Remote On-Off | 1 x Remote ON-OFF |
Internal I/O
| Expansion | 1 x Mini-PCIe (PCIe/USB2.0 signal supported) 1 x M.2 Key-E 2230 slot (WiFi +BT supported) 1 x SIM socket 1 x 8Bit GPIO |
|---|

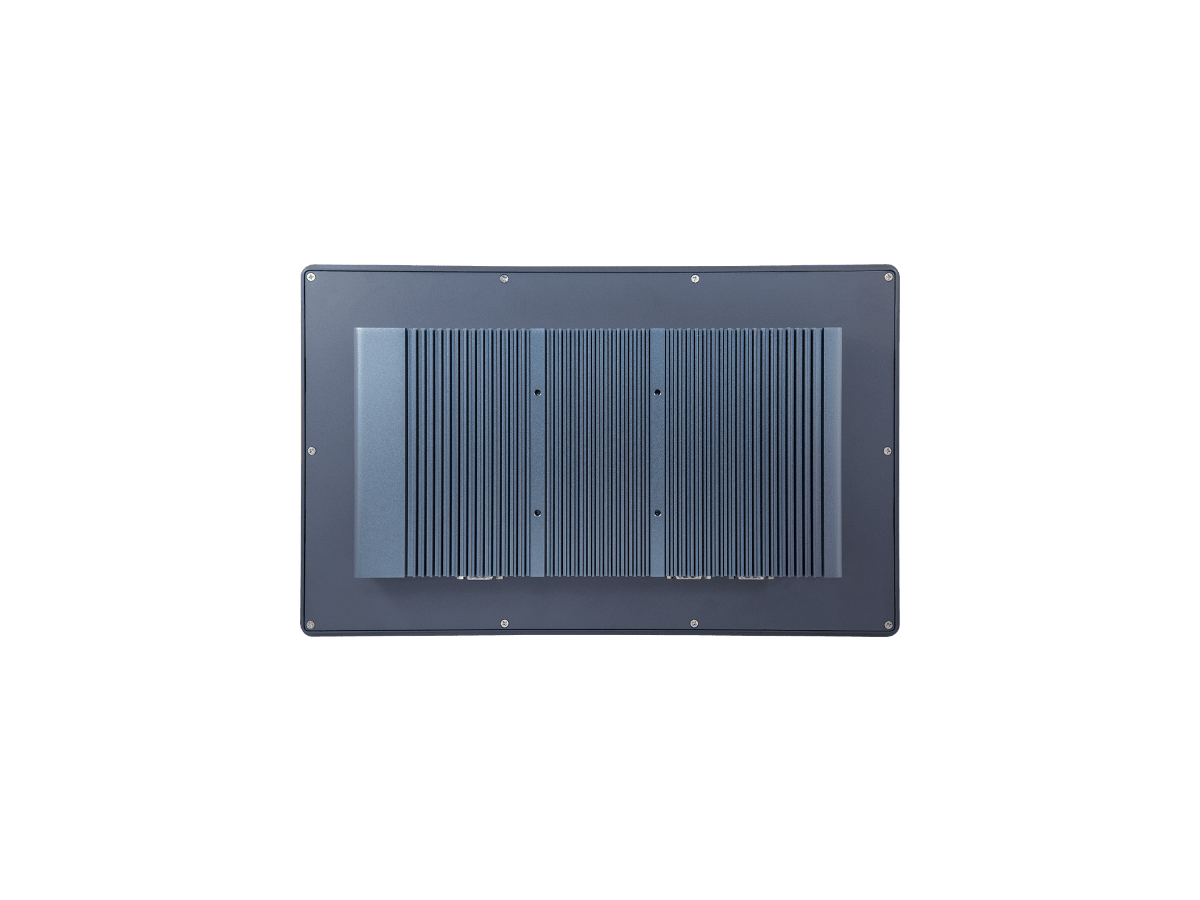

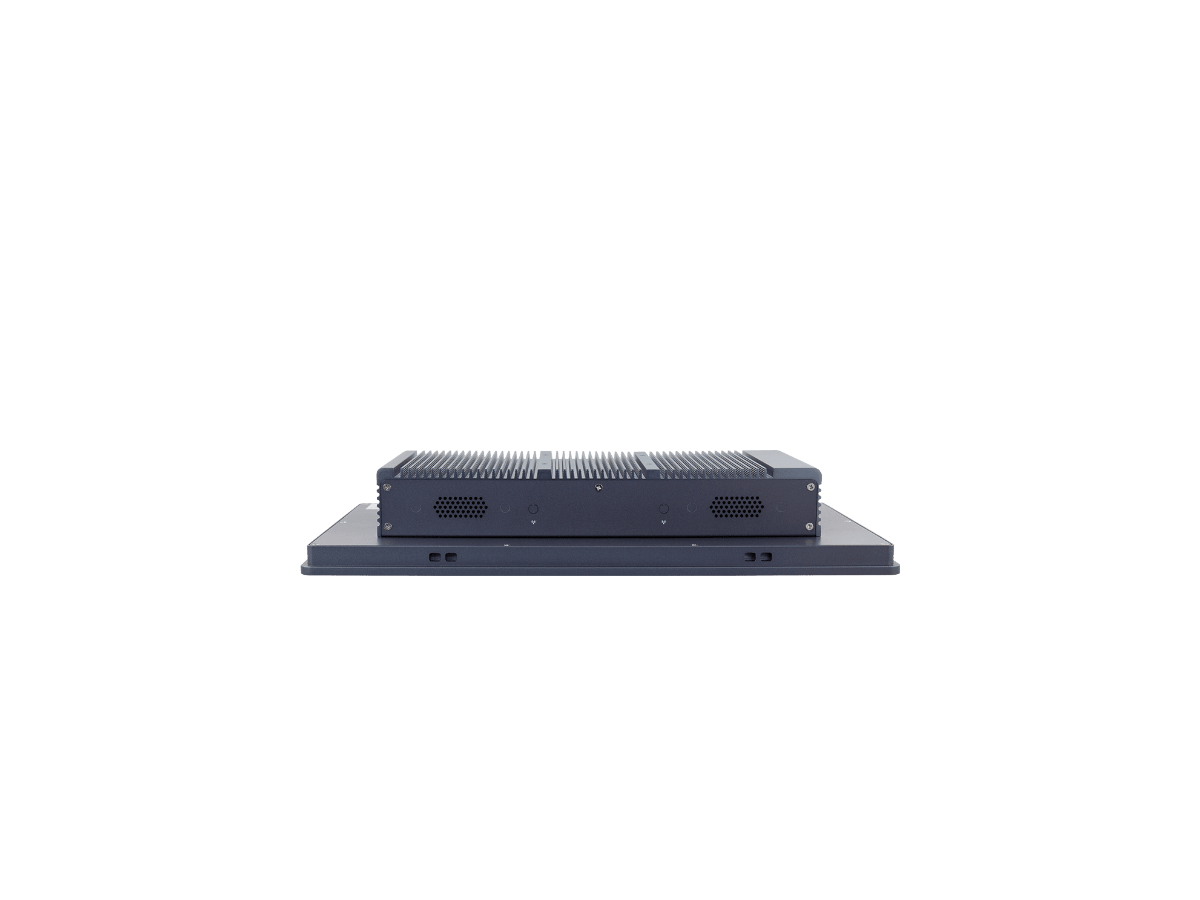

Mechanical
| Front Panel | Aluminum |
|---|---|
| Heat-Sink | Aluminum |
| Rear Cover | SECC |
| Reset button | 1 x OS reset |
| Power button | 1 x Power button W/LED |
| Mounting Type | Panel Mount, Wall and VESA-mount (100 x 100mm) |
| Dimension (W x H x D) | 395(W) x 245.5(H) x 59(D)mm |
| Cut out | 387 x 237.5mm |
| Weight (Net) | 4.54 Kg |
| Ingress Protection | Front panel IP66 |
Environmental
| Operating Temp. | -10 ~ 50°C |
|---|---|
| Storage Temp. | -40 ~ 70°C |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Random Vibration | 5~500Hz, 2Grms operation |
| Sine Vibration | 5~500Hz, 2G Non-operation |
| Shock | 10g 11ms operation, 30g 11ms Non-operation |
Ordering Information
| SP-151C-11115G4 | 15.6"(16:9) Panel PC, Intel® 11th Gen. Core™ i3-1115G4 3.0G processor, HDMI*1, USB*4, LAN*3, COM*4, DC10~36V power input |
|---|---|
| SP-151C-11135G7 | 15.6"(16:9) Panel PC, Intel® 11th Gen. Core™ i5-1135G7 2.4G processor, HDMI*1, USB*4, LAN*3, COM*4, DC10~36V power input |
| PAC-120W-FSP-SPA R1.0 | AC/DC ADAPTER KIT (W/UKCA),19V,120W,2 WIRE w/ USA POWER CORD |
| PAC-120W-FSP-SPA R1.1 | AC/DC ADAPTER KIT (W/UKCA),19V,120W,2 WIRE w/ EU POWER CORD |
| PAC-120W-FSP-SPA R1.2 | AC/DC ADAPTER KIT (W/UKCA),19V,120W,2 WIRE w/ UK POWER CORD |
| PAC-120W-FSP-SPA R1.3 | AC/DC ADAPTER KIT (W/UKCA),19V,120W,2 WIRE w/ IN POWER CORD |
