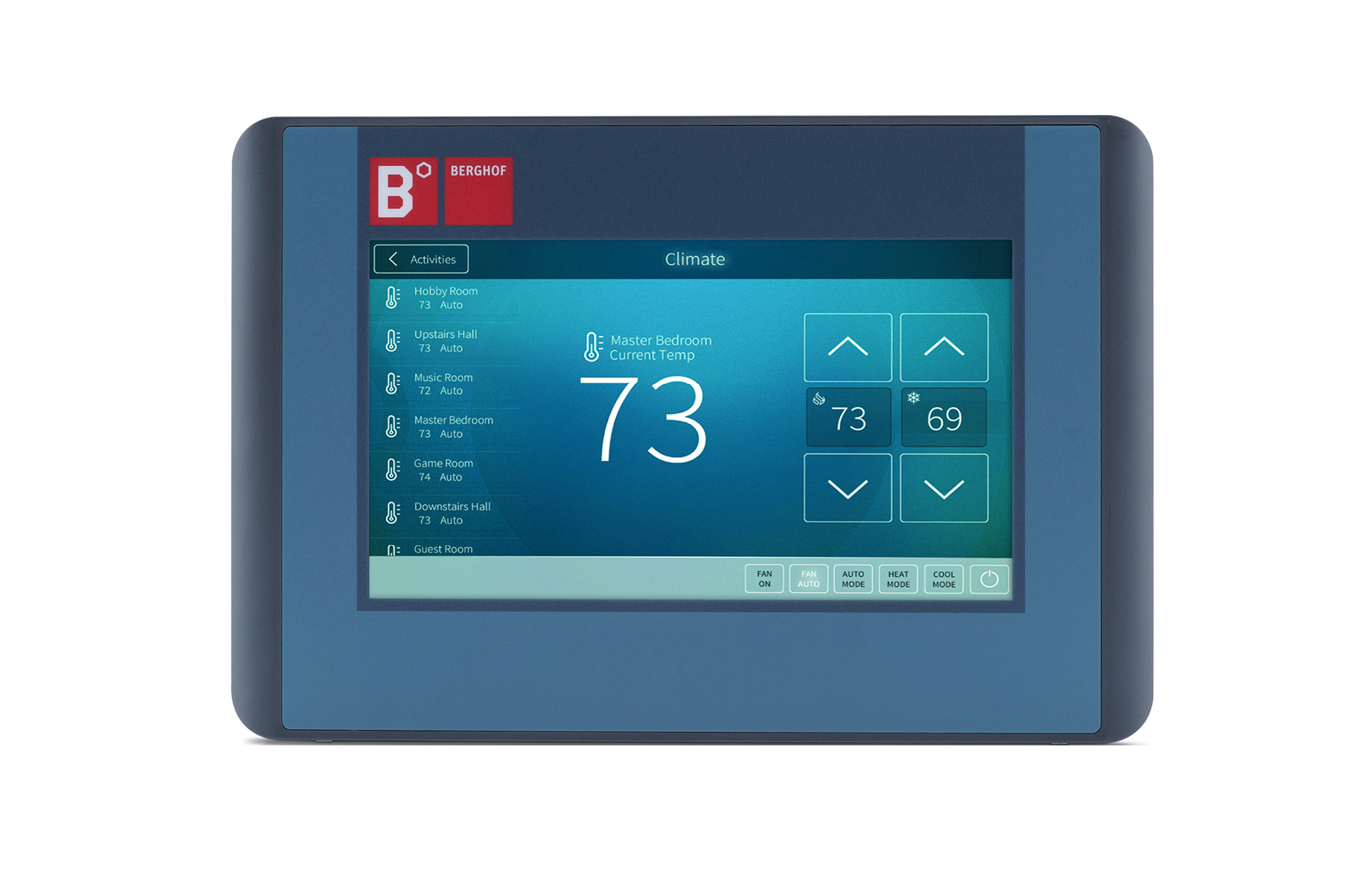

Berghof - B-Primis DC-Pro - Automation Display Controllers

The B-Primis DC-Pro offers a niche-free clean front with resistive touch and tool-free installation. It includes remanent hardware memory, temperature sensor monitoring, isolated interfaces, and security features like tamper-proof hardware identification. Available in 4", 7", 10", and 15" sizes with USB application updates and OpenVPN support.

BERGHOF Automation Download brochure Send Enquiry

Send Enquiry

Fill out your info below to

DC-Pro

This thoroughly robust display controller with resistive touch and niche-free clean front can not only be installed without tools, but also offers you important security software features. Remanent hardware memory independent of the real-time clock battery, integrated temperature sensor monitoring, isolated interfaces and much more.

Also available as a dual-core device with up to 1 GB RAM, 2 GB flash, 100 kB retain.

Features:

  • Available in 4", 7", 10" and 15"
  • Application update via USB
  • Permitted for use in residential areas
  • Application protection via tamper-proof hardware identification
  • Optional downgrading of the PLC cycle time down to 500μs
  • Three-wire measurement to compensate for line resistance
  • OpenVPN
  • Universally usable VNC + HTML5 web browser
  • Configurable inputs for counters and encoders
  • Control buttons for resetting / stopping / starting the PLC application
  • Integrated switchable termination resistors for the interfaces
  • Two-stage external HW watchdog
  • PT100/PT1000-compatible analog inputs
  • Separate power supply for the digital outputs in groups
  • Serial 9-bit multi-drop mode
  • Operating hours counter
