Berghof - B-Primis DC-Rack Display Controller

The DC-Rack features a seamless metal front, high brightness display, and resistive touch. Designed for control cabinets and server racks, it offers remanent hardware memory, temperature sensor monitoring, isolated interfaces, USB updates, OpenVPN, and tamper-proof hardware identification. Available as single or dual-core with up to 512 MB RAM.

BERGHOF Automation Download brochure Send Enquiry

Send Enquiry

Fill out your info below to

DC-Rack

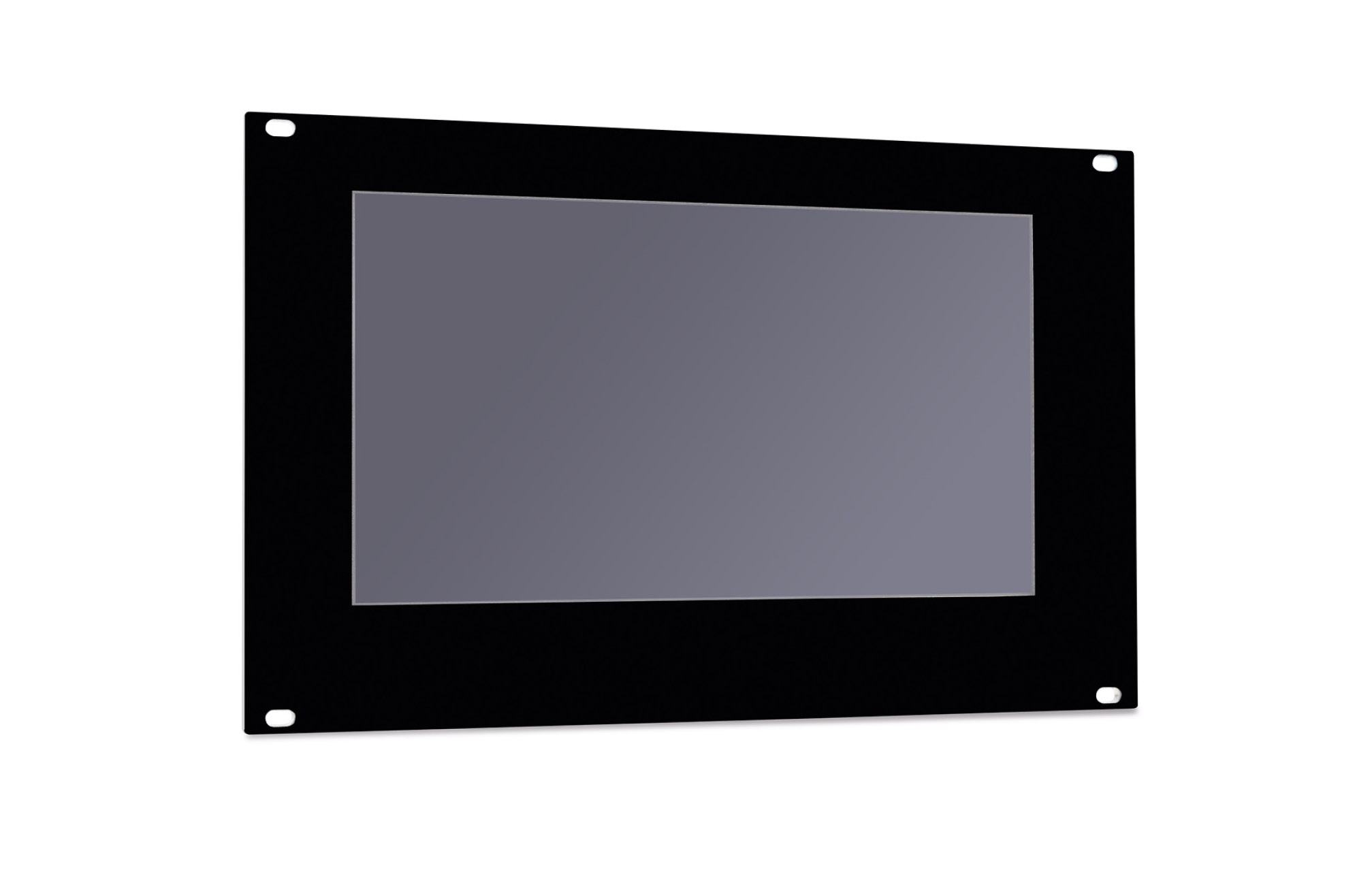

Thanks to the seamless metal front and housing, you get a robust display controller suitable for mounting in 19” rack systems.
The B-Primis DC-Rack 7 is mainly used in control cabinets or as a server cabinet controller. We use a display with high brightness, perfect contrast and resistive touch.
Available as a single-core and dual-core device with up to 512 MB RAM, 256 MB flash, 100 kB retain and 2x 800 MHz ARM® CPU with Cortex™-A9.

Features:

  • Remanent hardware memory independent of the battery
  • Integrated temperature sensor monitoring, e.g. for the control cabinet
  • Isolated interfaces and much more
  • Application update via USB
  • Residential area approval
  • Application protection via forgery-proof hardware identification
  • Optional downgrading of the PLC cycle time down to 500μs
  • Three-wire measurement to compensate for line resistance
  • OpenVPN
  • VNC + HTML5 web browser for universal use
  • Inputs configurable as counters and encoders
  • Operating button for resetting/stopping/starting the PLC application
  • Integrated switchable terminating resistors for interfaces
  • External HW watchdog, two-stage
  • Analog inputs, PT100/PT1000-capable
  • Separate voltage supply of the digital outputs in groups
  • Serial 9bit multi-drop mode
  • Operating hours counter
