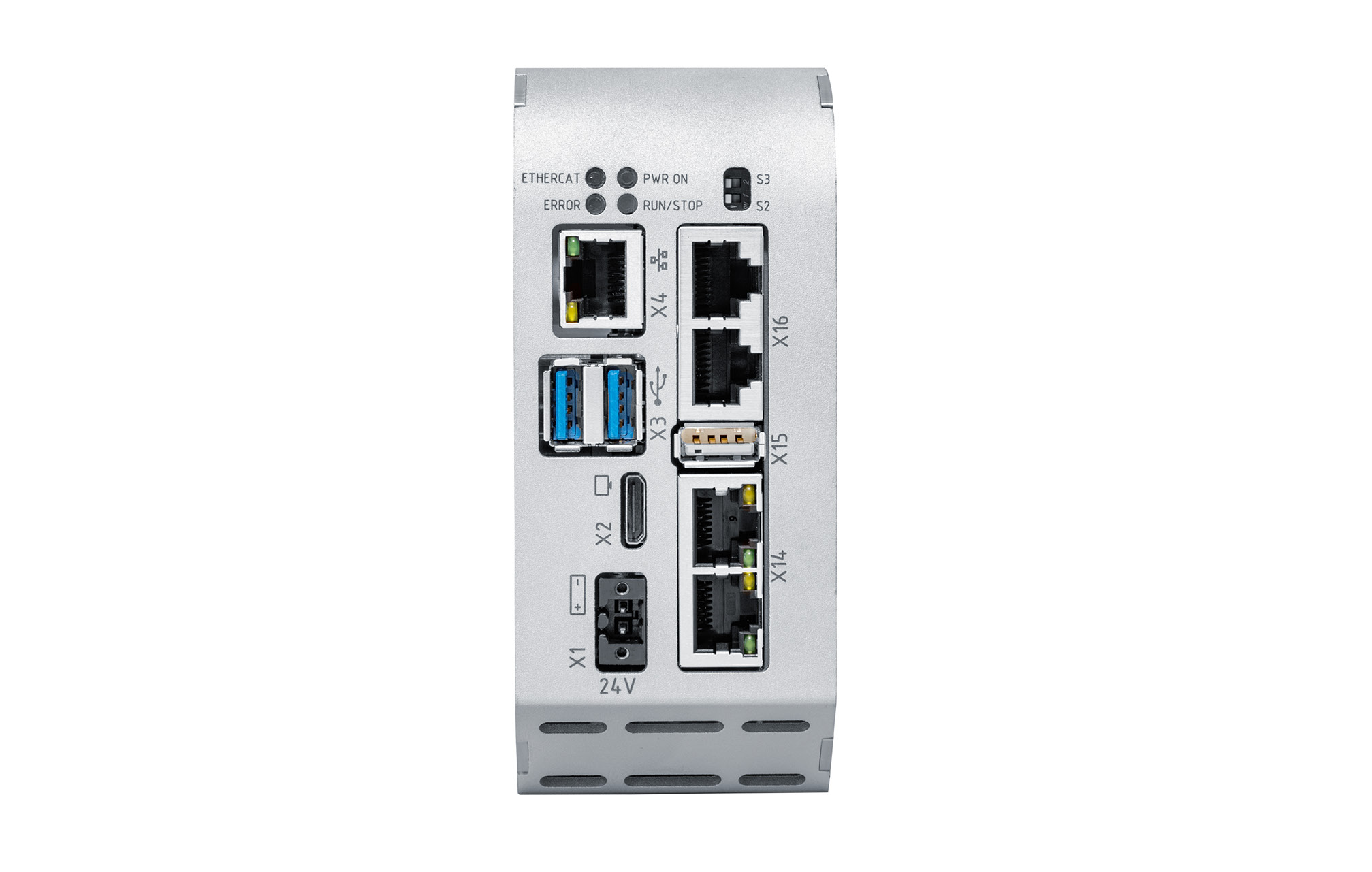

Berghof - B-Nimis BC-Pi Plus Industrial Box PC

Berghof - B-Nimis BC-Pi Plus Industrial Box PC

The BC-Pi Plus builds on the Prime model by adding native CAN bus, RS232/RS485 interfaces, and multiple USB ports. It supports WLAN & Bluetooth options and is ideal for IPC CAN applications requiring versatile connectivity and industrial-grade performance.

Send Enquiry

Fill out your info below to

BC-Pi Plus

The BC-Pi Plus extends the Prime model with interfaces such as RS232/RS485 and a native CAN interface and is therefore ideally suited for IPC CAN applications. USB 3.0, Gibabit Ethernet, WLAN and Bluetooth (optional) make the Raspberry Pi-based box PC the automation solution for the future.

Features:

  • Up to 8 GB RAM / 32 GB Flash
  • 2x Host USB 3.0, 1x Host USB 2.0
  • 1x CAN bus
  • 1x RS232 / RS485
  • 1x uSD (SDXC)
  • Compatible with Berghof’s entire standard portfolio
  • Integrated EtherCAT communication system
  • Industrial temperature ranges
  • Raspberry Pi OS
  • CODESYS standard
  • WLAN & Bluetooth optional
  • Compute Module 4
  • Certificates for international use are available
