industrial Edge computing Gateway

EG500 features powerful edge computing capabilities, equipped with RS232, RS-485, DI, DO, and ADC typical industrial interfaces. It realizes data processing at the network edge in real time for high-performance IoT deployments. significantly reduces the data flow between field sites and data center.

With 4G/LTE, CAT6/CAT4/3G/2G/LTE CAT M1(eMTC) and NB-IoT cellular network, Dual-band 2.4GHz/5GHz Wi-Fi, dual Gigabit Ethernet, and Elastic Linux based OS, it's easy to deploy and interoperate with IoT platform like Microsoft Azure, AWS, ThingsBoard, etc.

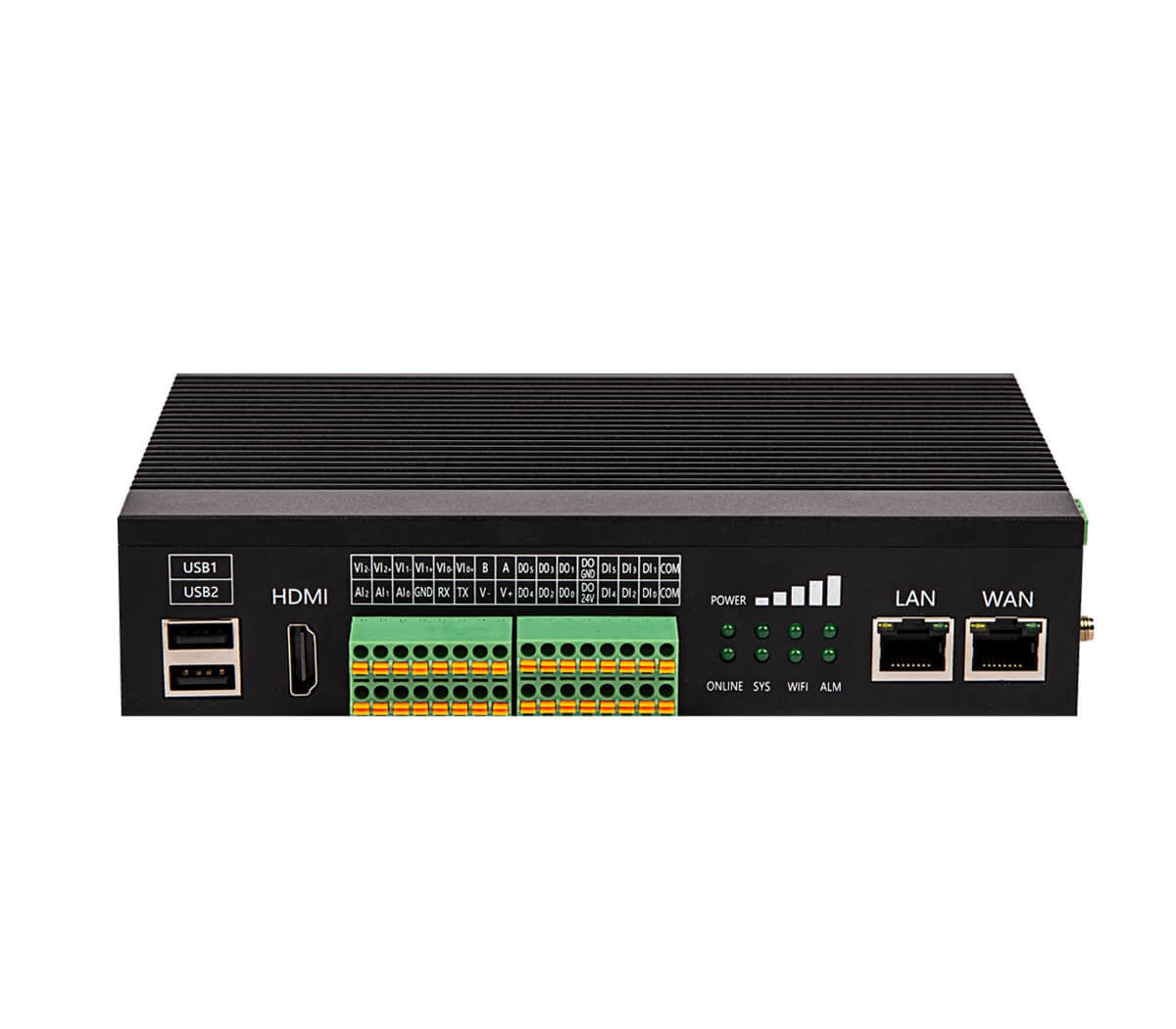

Numerous interfaces support edge devices

Isolated Serial Port 1x RS485, and 1x RS232
Industrial-grade isolated 6x DI, 6x DO and 3x ADC
2x 10/100/1000Mbps Gigabit Ethernet Port
1x Up to 4kp60 supported HDMI output
2x High-Speed USB 2.0 Ports
Compatible with multiple industrial protocols including:
Modbus TCP, Modbus RTU, OPC UA, EtherNET/IP, ISO on TCP, Mitsubishi MC serials...

Powerful Computing Operation Platform

Powered by Raspberry Pi CM4 which featured high-performance edge computing capabilities, it's easy to build up your IoT projects and PoC applications.

ARM Cortex-A72 Quad-core processor 1.5GHz, 1GB RAM + 8GB eMMC (diverse RAM and Storage optional)
Raspbian/OpenWRT Based Linux OS, Docker, Node-RED, Python... available with SDK provided by Elastel
Pre-compiled software bundled for common application like data acquisition, Modbus collection, MQTT...
Easy interoperate with IoT Ecosystem like Microsoft AZURE, Amazon AWS, AliCloud, ThingsBoard platforms, etc.

Industrial-grade Design for Reliability & Security

From computing module, communication module to each electronic components, EG500 adopts strict industrial grade standards. Solid and durable housing and SIM lock secure it at your remote edge field .

Fanless design achieved wide Operating Temperature from -25°C to +70°C

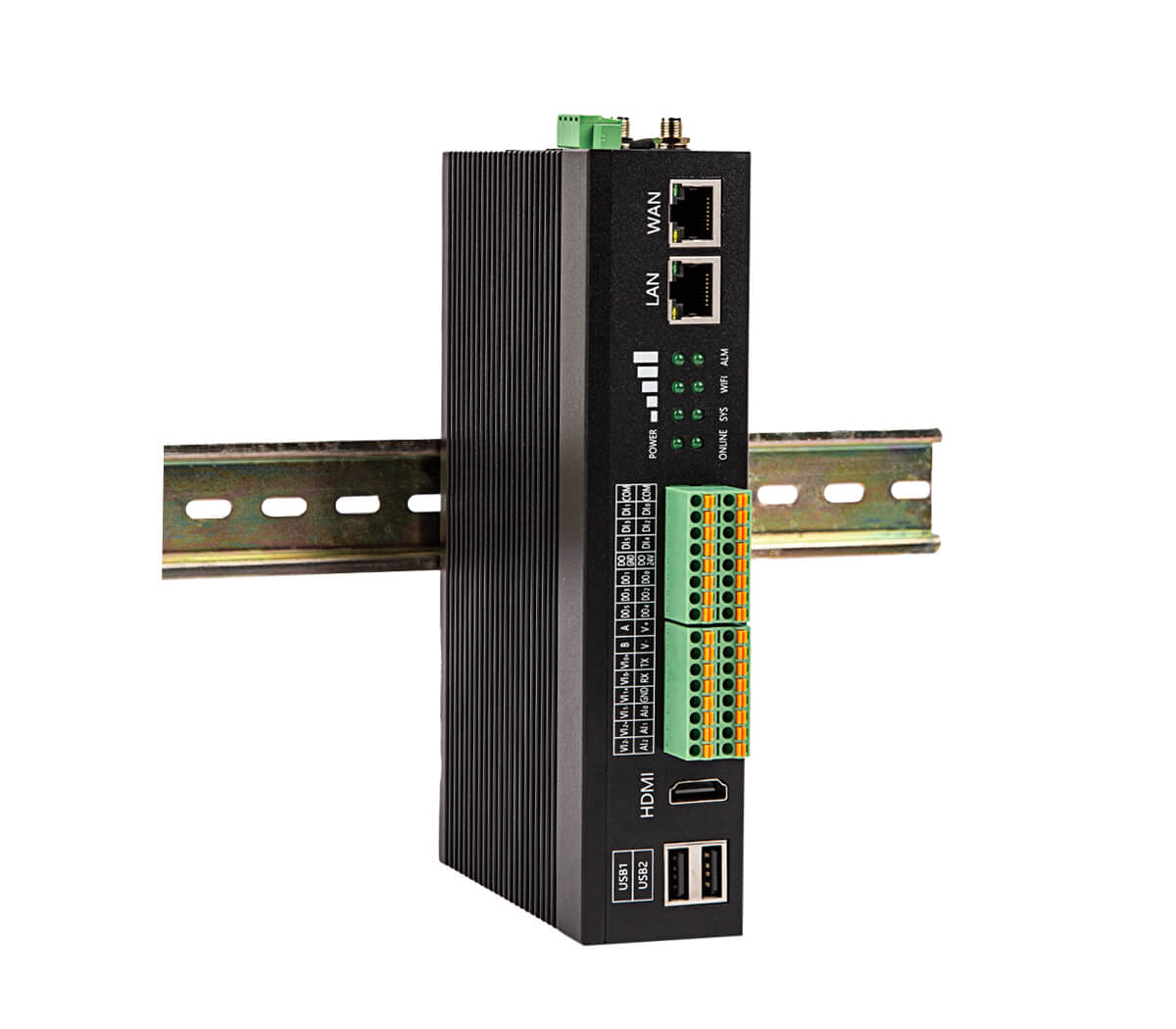

35mm DIN-Rail and wall mount Supported
EMC & ESD Protection, 1.5 kV RMS Ports Isolation.
Built-in RTC with supercap

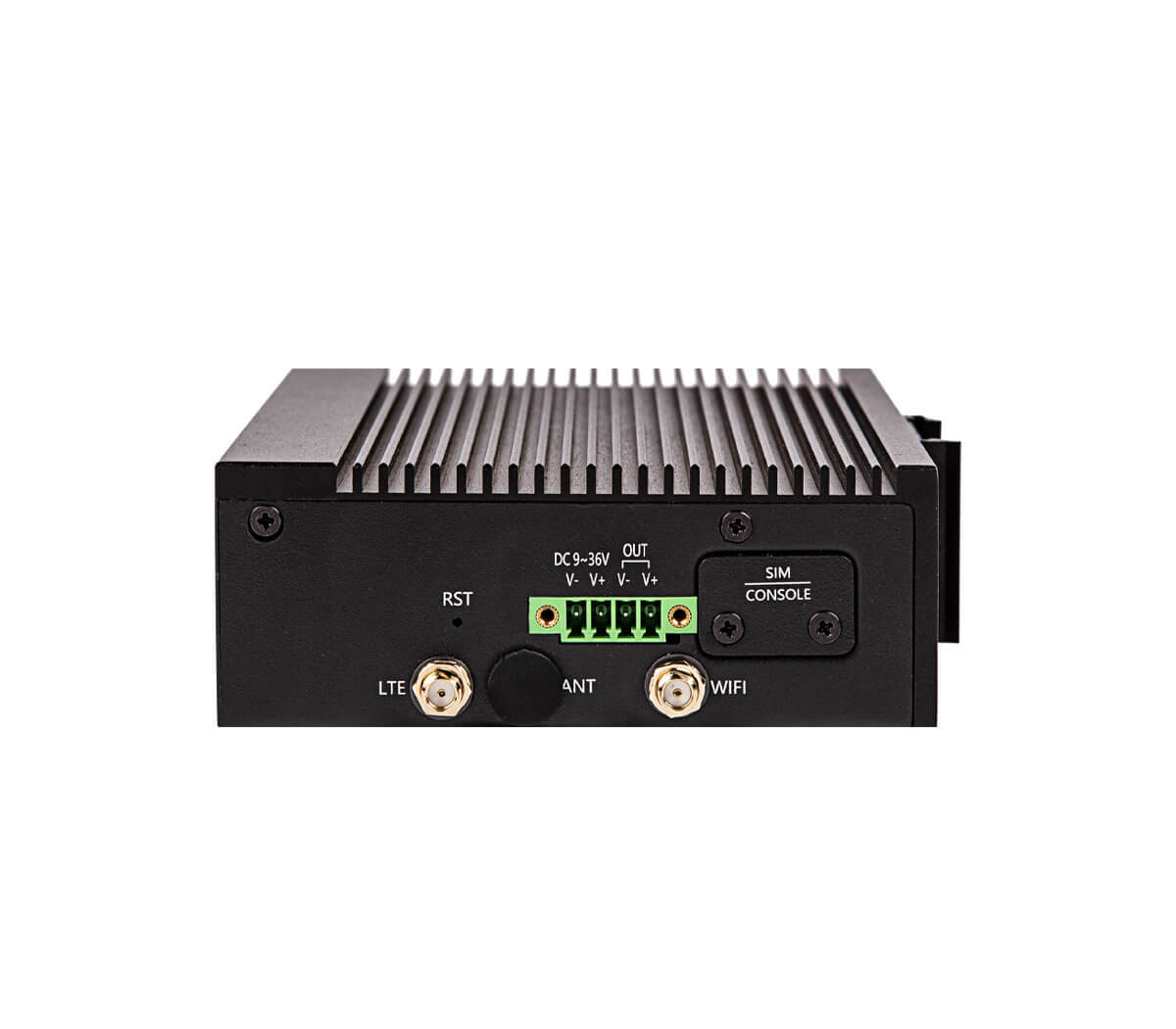

SIM card slot and Console port lock set the data secuirty

Applications

With the Raspberry Pi CM4 running up to 1.5GHz computing capability, and flexible Linux Operating System, EC500 could be applied in many kinds of scenarios.

Programmable Logic Controller (PLC)

With Serial ports and DI & DO ports available, and take advantage of Software-defined PLC, EG500 can easily operate as a typical PLC.

Edge computing Gateway

Data collecting from slave devices, analyzing and storing. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.

Industrial modem and cellular Router

With a built-in cellular module, EG500 can be configured as an industrial modem and router operating in 4G/LTE, 3G, NB-IoT mobile network. Easily remote access in by build a VPN or a defined public IP.

Micro Server Computer

The Compact and high reliability design with HDMI port, allows EG500 operate as a micro server. Raspberry Pi compatibility and Linux OS provides computer operation possibility.

Specification

CPU	RPI CM4, Quad-core A72 (ARM v8)@ 1.5 GHz
Memory	1GB/2GB/4GB/8GB options LPDDR4
FLASH	8GB/16GB/32GB options eMMC
Ethernet	2x Gigabit Ethernet, (1-WAN+1-LAN or 2-LAN Configurable)
Cellular	1x mPCIe for 4G LTE, 3G, 2G, NB-IoT, CAT-M1 cellular modules
Wi-Fi	Dual Band 2.4GHz & 5GHz + Bluetooth 5.0
LoRaWAN	1x mPCIe slot for LoRaWAN modules, Compatible with LoRaWAN modules powered by Semtech SX1301/1302
WiFi HaLow (802.11ah WiFi)	Reserved mount points for SX-NEWAH from SilexTechnology
GPS	Cellular Module built-in supported (Optional)
Serial Ports	Isolated RS-232 x 1, RS-485 x 1;
I/O	6-channel digital input DI (0..24VDC, Configurable Status/Count mode)
	3-channel Analog input AI (0-10VDC, 4-20mA, 18-bit resolution)
	6-channel digital/pulse output DO with overvoltage protection (0..60V, Max. power effciency: 500 mA)
USB	USB 2.0 x 2 for peripherals,
USB	USB-C x 1 for debug Console
HDMI	HDMI 2.0 x 1, (Up to 4kp60 video & audio output)
Power Supply	Wide Range Voltages 9~36V DC/1A, recommended 24V/1.5A
Enclosure	Full Aluminum, IP30, DIN-rail
Dimensions (mm)	187mm x 112mm x 42mm
Weight	780g (1.72 lb)
Operating Temperature	-25 ~ 70°C (industrial grade)
Watchdog	Standalone Hardware Watchdog
OS	ElastOS (OpenWRT based), Raspbian with WebUI
Application Features	Data Acquisition, Modbus RTU/TCP, Siemense S7, Mitsubishi FX PLC protocls…
	Uninterrupted Network manage,VPN, TCP/UDP, MQTT, HTTP, OPC UA, BACnet…
	Support Secondary Development, Codesys, Ignition Edge, Python, Node-RED, Docker ...
