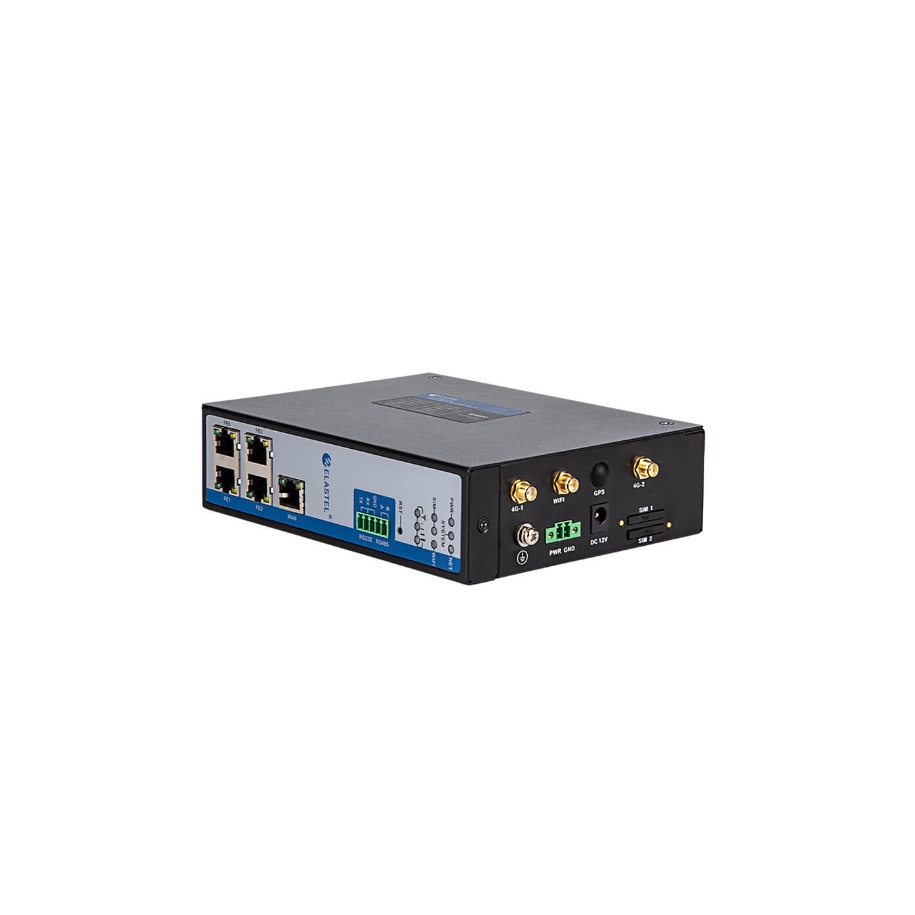

Elastel - ER500 Industrial Dual-SIM Cellular Router
The Elastel Elink series industrial cellular router ER500, is a dual-SIM cellular router that integrates global 4G LTE, with 5x 10/100 Mbps Ethernet ports and Wi-Fi support, also extended 1xRS232 and 1xRS485 serial ports for industrial usages.
- ★ Dual-SIM seamlessly failover for Global 4G LTE/ 3G/ 2G networks
- ★ 5x 10/100 Mbps ETH ports (1-WAN 4-LAN, or 5-LAN), Wi-Fi integrated
- ★ Easy-to-use webUI with prebuilt Serial-to-IP data SCADA features
- ★ -35°C to +75°C Operating Temperature, Industrial rugged and reliablity
Description
Designed to support dual-SIM for global 4G LTE networks, ER500 Seamlessly switch between SIM cards to ensure uninterrupted connectivity and reliability. Offering 5x ETH ports, Wi-Fi, serial ports, and equipped with an OpenWRT based configurable OS, enabling smooth data transmission and compatibility with a wide range of devices in any kinds of industrial applications.
With full industrial-grade design, built-in hardware watchdog, multi-layer software failover, backup and auto recovery mechanism. Running on an OpenWRT based OS, and prebuilt web configuration Serial-to-IP data acquisition features, guarantee this ruggedized cellular router reliably working on variety applications in your industrial environment.
Highly-reliable Uninterrupted Network
With Dual SIM failover and Elastel Elink Seamlessly backup technology, ER500 provides an uninterrupted connectivity for maximizing your productivity and eliminating downtime.
Fully Industrial Design
From each electronic parts to structure design, the ER500 is born for industrial to ensure most reliablity under harsh industrial conditions.
- Operating Temperature from -35°C to +75°C
- 15KV ESD, 1.5KV EMC, 2KV Surge Protection
- Power over-current/voltage & anti-reverse protection
- DIN-rail & Panel mounting support
- External RTC and WDT, MTBF ≥100,000 Hours
Easy Web Management Firmware
Leverage ER500 web-based set-up interface, the configuration and large-scale Deployment become easy and fast
- Optimized OpenWRT based OS with common configuration preset
- multiple VPN and common apps available
- Web-based visible settings for Modbus Serial-to-IP data acquisition features
- Easy remote management and interoperation via SNMP, MQTT...
Applications
With compact industrial housing, the reliable connectivities , and flexible Linux OS, ER500 could be in any kinds of your applications like below our success customers cases.
Reliable network for EV Charging
Air compressor monitoring over uninterrupted LTE
