Helmholz – PROFINET Switches
The managed PROFINET-Switch supports PROFINET according to Conformance Class B and offers transmission security through ring redundancy as an MRP client.
Download:
PROFINET Switches

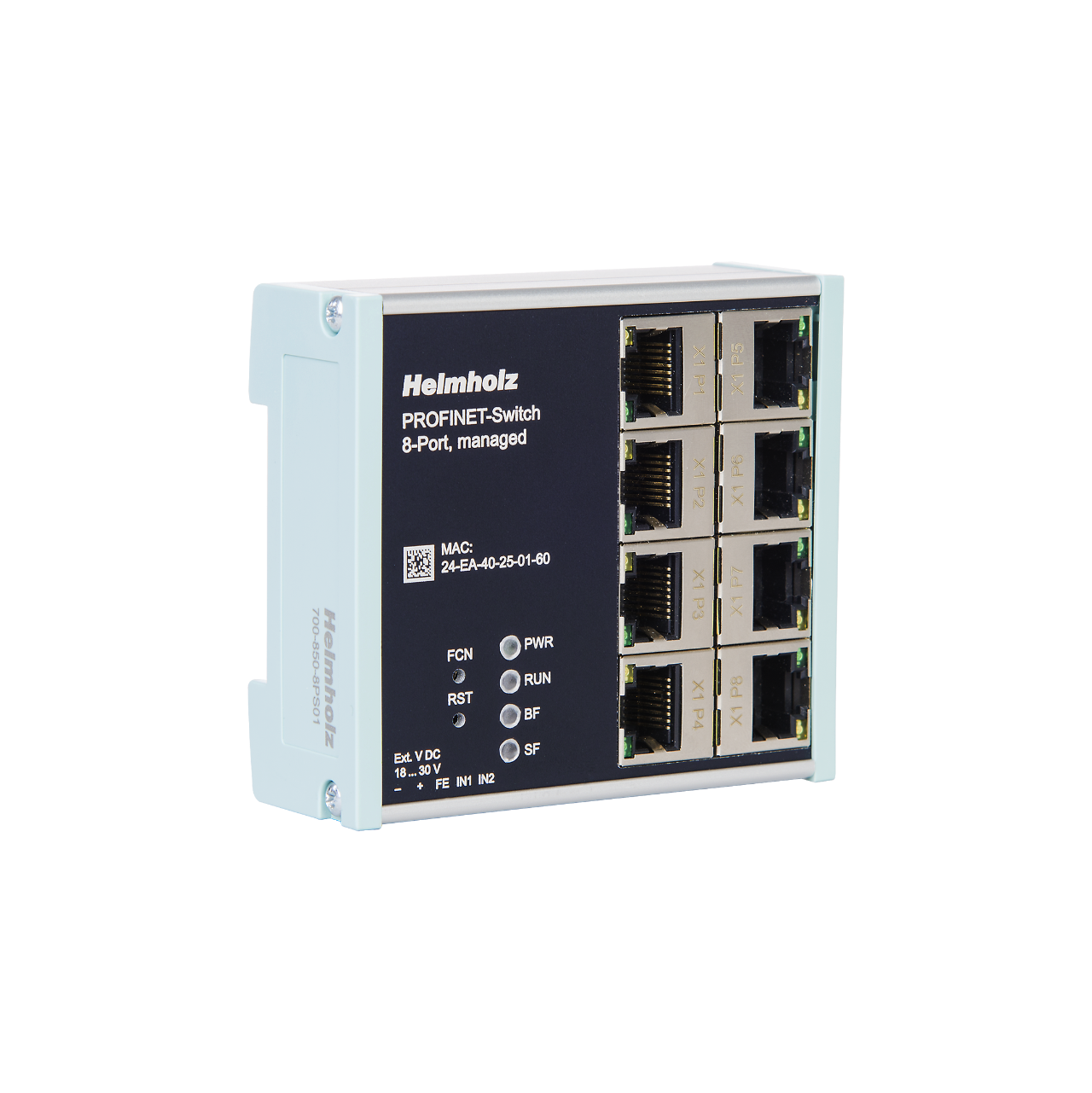

4/8/16 Ports PROFINET Switches
One of the most important functions of a PROFINET-Switch is the prioritizing of the PROFINET frame traffic in the machine network. The managed switch can differentiate whether the frame is a web query, an FTP file transmission, a media stream, or a PROFINET frame. In the case of a high transmission load, the important frames can thus be prioritized in order to prevent frame losses.
With a GSDML file you can integrate the switch into your automation environment in the usual way.
The supported PROFINET protocols, such as LLPD, DCP, or even diagnosis alarms, can be easily configured and administered.
Technical advantages when using a PROFINET-Switch
- Prioritizing of PROFINET frames
- Assignment of a configuration via the device name
- Neighborhood detection
- Device exchange without programming device
- Ring redundancy
- Each port can be activated or deactivated
- Diagnostic messages for network problems
- Identification and maintenance data
With this variant of the managed PROFINET-Switch, you can connect up to 4/8/16 network participants while saving time and money.If you would like to use only one part, we recommend our 4-port managed PROFINET-Switch.
Key features:
- PROFINET Conformance Class B
- Integration into the automation network with GSDML file
- Quick, simple configuration and diagnosis via PROFINET and web interface
- LLPD, DCP, SNMP, diagnosis alarms
- Media redundancy: MRP client
- Port mirroring
- Network statistics (frames and errors)
- Managed switch with 4/8/16 x 100 Mbps RJ45 ports
8-Port, managed, IP67
The managed PROFINET-Switch supports PROFINET according to Conformance Class B and offers transmission security through ring redundancy as an MRP client.
One of the most important functions of a PROFINET-Switch is the prioritizing of the PROFINET frame traffic in the machine network. The managed switch can differentiate whether the frame is a web query, an FTP file transmission, a media stream, or a PROFINET frame. In the case of a high transmission load, the important frames can thus be prioritized in order to prevent frame losses.
With a GSDML file you can integrate the switch into your automation environment in the usual way.
The supported PROFINET protocols, such as LLPD, DCP, or even diagnosis alarms, can be easily configured and administered.
With its protection class IP67 and temperature range from -40 °C to +75 °C, the PROFINET Switch 8 Port, IP67 is ideal for use in rough industrial conditions. The product is ideally suited for installation without a control cabinet and therefore offers a wide range of applications.
Technical advantages when using a PROFINET-Switch
- Prioritizing of PROFINET frames
- Assignment of a configuration via the device name
- Neighborhood detection
- Device exchange without programming device
- Ring redundancy
- Each port can be activated or deactivated
- Diagnostic messages for network problems
- Identification and maintenance data
With this variant of the managed PROFINET-Switch, you can connect up to 8 network participants in harsh environments, saving time and money.
Key features:
- PROFINET Conformance Class B
- Integration into the automation network with GSDML file
- Quick and easy configuration and diagnostics via PROFINET and web interface
- LLDP, DCP, SNMP, diagnostic alarms
- Media Redundancy: MRP Client
- port mirroring
- Network statistics (frames, errors)
- Managed switch with 8 x 100 Mbps M12 ports
- Protection class IP67
- Switch cabinet-less assembly possible
16-Port, managed, 10/100/1000Mbps
The FLEXtra PROFINET-Switch connects the control world with PROFINET according to Conformance Class B and the IT world with up to 1GBit Ethernet.
With the FLEXtra PROFINET-Switch, PROFINET components with 100 Mbps as well as Ethernet subscribers with up to 1000 Mbps can be networked.
This enables communication from the control level and the machine in one switch. The PROFINET prioritization of the machine level is always guaranteed.
One of the most important functions of a PROFINET-Switch is the prioritization of PROFINET telegram traffic in the machine network. The managed switch can distinguish whether the telegram is a web request, an FTP file transfer, a media stream or a PROFINET telegram. If the transmission load is high, the important telegrams can thus be prioritized to prevent telegram loss. Using a GSDML file, you can integrate the switch into your automation environment as usual.
The supported PROFINET protocols, such as LLDP, DCP or diagnostic alarms, can be easily parameterized and managed.
The practical design with the intelligent arrangement of the Ethernet sockets saves space in the control cabinet.
The always clearly visible status LEDs on the top of the FLEXtra PROFINET-Switch allow easy diagnostics even with full cabling.
Technical advantages when using a PROFINET-Switch
- Prioritizing of PROFINET frames
- Assignment of a configuration via the device name
- Neighborhood detection
- Device exchange without programming device
- Ring redundancy
- Each port can be activated or deactivated
- Diagnostic messages for network problems
- Identification and maintenance data
Key features:
- PROFINET Conformance Class B (100 Mbps)
- Ethernet with up to 1000 Mbps
- Integration into the automation network with GSDML file
- Quick and easy configuration and diagnostics via PROFINET and web interface
- LLDP, DCP, SNMP, diagnostic alarms
- Media redundancy: MRP client
- Port mirroring
- Network statistics (frames, errors)
- Redundant power supply unit
- Practical design
- 16-Port managed Ethernet 10/100/1000 Mbps
