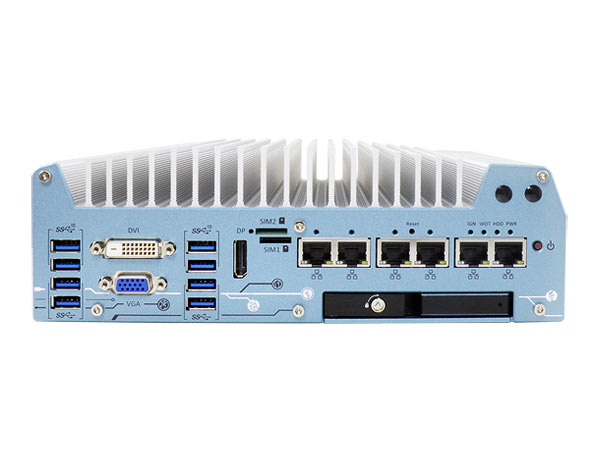

Neousys – Nuvo-7000 E/P/DE Series Industrial PC
Intel® 9th / 8th-Gen Core™ i7/ i5/ i3 Fanless Computer with 6xGbE Ports, MezIO™ Interface and Low-profile Chassis
- Intel® 9th / 8th-Gen Core™ i 8-core 35W/ 65W LGA1151 CPU
- Low-profile chassis with hot-swappable 2.5″ HDD/ SSD tray
- MezIO™ interface for easy function expansion
- Rugged, wide temperature range from -25°C to 70°C fanless operation
- Up to 6x GigE ports, supporting 9.5 KB jumbo frame
- M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
- 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
- VGA/DVI/DP triple independent display, supporting 4K2K resolution
Introduction
Nuvo-7002LP/7006LP is the low-profile version of the new Nuvo-7000 family. It features a low-profile chassis, which reduces its height to 79 mm, and remains extraordinary 25°C to 70°C operating temperature. For those demanding varied computing power, Nuvo-7002LP/7006LP supports socket-type CPU for flexible CPU installation. You can choose Intel® 9th / 8th Gen Core™ i7/i5/i3, from 35W to 65W TDP, according to your performance consideration and operating environment.
Nuvo-7002LP/7006LP inherits comprehensive I/O functions, such as GbE, USB3/USB2, COM and VGA/DVI/DP, from Nuvo-7000E/P. It also incorporates the MezIOTM interface for further I/O expansion features one front-accessible, hot-swappable HDD/ SSD tray which can be configured as RAID 0/1 when combined with the internal SATA port. It also leverages cutting-edge M.2 NVMe SSD technology for over 2000MB/s disk read/ write speed, or install an Intel® Optane™ memory for the ultimate system acceleration. Powered by Intel® 9th/ 8th-Gen Core™ processor running with advanced Intel® Q370 chipset, The Nuvo-7000 series fanless embedded computer provides outstanding performance for emerging high-end requirement than 6th & 7th generations.
Wide Temperature Range Operation
The Nuvo-7000 series fanless embedded computer has patented passive cooling thermal design that can effectively channel heat from heat sink and truly operate in wide temperature range from -25℃ to 70℃ while under 100% CPU loading.
Neousys’ Patented Cassette is an innovative and brilliant method to accommodate an add-on card. The modularized design offers easy installation/ replacement and the possibility of passive cooling for add-on card brings reliability and flexibility to the system. You can install COTS PCI/PCIe card for function expansion, or choose Neousys’ offer of Cassette module with pre-installed heat-spreader to include PoE+, USB 3.0 or independent graphics card.
MezIO™ interface is designed for incorporating application-oriented I/O functions into an embedded system. Neousys offers a variety of Nuvo-7000 compatible MezIO™ modules with various I/Os such as RS-232/422/485, isolated DIO and ignition power control. Users can also leverage signals/ power supplied by the MezIO™ interface to customize one’s own module. Neousys MezIO™ presents a cost-effective way to build a tailor made embedded system for your application.
